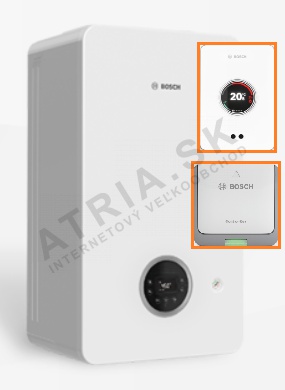

BOSCH Condens GC 2300i W 22/25 C + CT 200 + K 20 RF
Code: 8730850102Related products
Product detailed description
Bosch Condens GC2300iW 22/25C CW 100
- Condens 2300iW 22/25 C- wall hung condensing boilerwith instantaneous hot water heating
- CT 200
- intelligent touch controller- Bosch Control-Key K 20 RF- plug-in module
- drain funnel with siphon

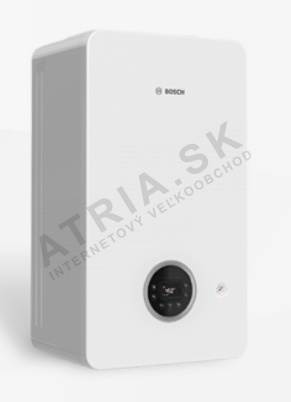

BOSCH CONDENS GC2300iW 22/25 C
-hung condensing boiler with instantaneous hot water heating
3.4 - 23.2 kW
white
Easy to use
The operation of the Condens 2300i W explains itself. You can therefore do without the manual. If you want, you can also control the boiler remotely via an app via the internet.
Easily efficient
The Condens 2300i W boiler's modulating burner adjusts the maximum output between 10 and 100% to your current heat demand. As a result, the boiler operates even more efficiently when you don't need full power. The result is a high season-related space heating energy efficiency of up to 94%.
Simply silent
The Condens 2300i W boiler can also be installed in a living space, as its excellent insulation ensures low noise levels. In other words - the boiler heats in a whisper. This is how Bosch high quality takes care of the quality of living in your home.
Boiler features
▶ highly efficient because it automatically adapts to your heat demand
▶ fascinating design of current Bosch condensing boilers
▶ space-saving thanks to compact dimensions
Benefits overview
- Highly efficient, space-saving.
- Intuitively operated LCD display.
- Integrated electronically controlled low-energy pump.
- Modulation range 1:8.
- Flow-through water treatment.
- Connection of Bosch space and equithermal controllers.
- Connection of a concentric flue gas/combustion air pipe Ø 60/100 mm or Ø 80/125 mm, or a separate pipe Ø 80 mm.
- Connection of a concentric flue gas/combustion air pipe Ø 60/100 mm or Ø 80/125 mm.
Technical data
Front design colour: white
Max. 23.5 kW
Min. rated thermal output (50/30° C): 3.4 kW
Rated thermal output: 22.5 kW
Max. 25.0 kW
ErP15 sound power level: 43 dB (A)
Seasonally dependent heating efficiency
spaces according to ErP15: 94%
Energy efficiency class: A
Energy efficiency class for hot water preparation: A
Load Profile: XL
Equipment
Expansion Vessel: 6.0L
High efficiency pump EEI ≤ 0.23: integrated
Switching valve: integrated
Dimensions and weight
Height: 713 mm
Width: 400 mm
Depth: 300 mm
Net weight: 36 kg
- Intelligent controller for 1 heating circuit and hot water preparation
- Possibility to set important functions directly on the touch screen, complete settings with the EasyControl app(for iOS, Android)
- Colour choice of display (white/black)
- Individual temperature adjustment in individual rooms using smart thermostatic heads
- Presence detection via GPS
- The controller cannot be combined with other controllers, e.g. CW 400
The EasyControl controller represents a revolution. The intelligent controller with app allows you to easily control the heating in any room, providing maximum comfort whenever and wherever you want it.
Presence detection
EasyControl registers when you are home and automatically adjusts the heating to your daily activities. Without you having to do anything. This way the heating is only on when you actually need it. Saving energy can be that simple!
Individual room control
21°C in the living room, 24°C in the bathroom and 18°C in the bedroom - with EasyControl you can control them effortlessly. Simply enter the desired temperature for each room and that's it. The only additional technology required is the Bosch Smart Radiator Thermostat (Smart TRV).
Regulation of individual rooms for underfloor heating is not yet supported.
Easily control your water heating
EasyControl not only saves you money on heating costs, but also on hot water heating costs.
Provides three options:
- On: hot water is available at any time
- Automatic: water is heated according to a timed program
- Off: the hot water function is switched off
Easily modulates
EasyControl supports burner modulation - ensuring the highest possible efficiency and increasing the life of the heating unit.
Easy installation
EasyControl no wall mounting required. Simply use the table stand. You can place the EasyControl intelligent controller exactly where you want it. All you have to do is connect the table stand to the socket and insert the appropriate key into the corresponding slot on the heater. Now the EasyControl controller can control your heating system.
Easily exceptional
Slim attractive design, glass surface with touch screen available in white and black fabre makes the EasyControl controller a stylish addition to any home.
The EasyControl controller will convince you not only with its attractive design, but also with its ability to save energy and heating costs. By winning the Safety and Energy Efficiency Award 2019, our product confirms its contribution to environmental sustainability.
Easy to use
The EasyControl app, with which you can operate the controller effortlessly, is self-explanatory.
You'll be able to navigate it and recognize the functions in no time: never before has the operation of your
heating is so easy. And it doesn't matter if you're at home or on the road.
Backlit
The EasyControl controller communicates with you not only through the app, but also with its backlight. As soon as you send an instruction to the heating system to increase the temperature, it lights up orange for one second, or vice versa to blue if you decrease the temperature. If you leave home, the backlight will turn green to indicate that the heating has automatically switched to "out of home" mode. A red backlight indicates a failure in the heating system. If everything is working as it should, the backlight remains off.
BOSCH Control-Key K 20 RF
-
Control-Key plug-in module (boiler installation) with electrical power supply for wireless chimney connection between Easycontrol CT200 and condensing boiler Condens 2300i,e.g. with Bosch smart heads
Additional parameters
| Category: | Condensing boilers |
|---|---|
| Warranty: | 2 years |
| Weight: | 68 kg |
| Automatický diagnostický systém: | áno |
| Bezpečnostný termostat: | áno |
| Dodávané príslušenstvo: | elektrický kábel, návod, záručný list |
| Elektrické krytie: | X4D |
| Elektronické zapaľovanie: | áno |
| Elektronika: | Bosch Heatronic |
| ? Expanzná nádoba: | 8 litrová |
| Hmotnosť prázdneho kotla: | 44 kg |
| Horný výkon kotla: | 25,2 kW |
| Krajina pôvodu: | EU |
| Letný režim: | áno |
| Množstvo kondenzátu: | 1,7 l/hod |
| Možnosť dvojbodovej regulácie: | nie |
| Možnosť nastavenia výkonu čerpadla: | áno |
| Možnosť prestavby na PB: | áno |
| Možnosť prevádzky bez termostatu: | áno |
| Možnosť pripojenia bezdrôtového termostatu: | áno |
| Možnosť pripojenia soláru: | áno |
| Možnosť pripojenia zásobníka: | áno |
| Možnosť rozšírenej záruky: | áno |
| Možnosť úpravy výkonu kotla: | áno |
| Odporučený filter vykurovania: | Total filter 3/4" |
| Odporučený regulátor: | Junkers CW 100 |
| Odporučený solárny set: | HEWALEX |
| Prevedenie komína: | TURBO |
| Priebeh zmeny výkonu: | modulovaný |
| Pripojenie el. napätia: | 230V |
| Pripojenie koncentrického dymovodu: | áno |
| Pripojenie oddeleného dymovodu: | áno |
| Prípojka TUV: | 1/2" |
| Prípojka vody: | 3/4" |
| Rozmery: | 850 x 400 x 370 mm |
| Spodný výkon kotla: | 3,3 kW |
| Spustenie kotla: | servisným technikom JUNKERS |
| Určenie kotla: | s prietokovým ohrevom vody |
| Večný plamienok: | nie |
| Vhodný pre podlahové kúrenie: | áno |
| Výkon TUV: | 24 kW |
| Zabudovaný filter vody: | nie |
| Výkon kotla na vykurovanie: | vysoký výkon nad 16 kW |
| Výrobca: | Bosch |
| Brutto váha: | 80 kg |
| Netto váha: | 68 kg |
| EAN: | 4062321342180 |
