Viessmann Vitodens 100-W, 32 kW + 150 l zásobník + regulácia

Code: Z022952

1 rating

Brand: Viessmann

4 045,20 € –20 %

Viessmann Vitodens 100-W, 32 kW + 150 l zásobník + regulácia

4 045,20 € –20 % 3 236,20 € / pcs

1 týždeň

Detailed information

Show all related products

Product detailed description

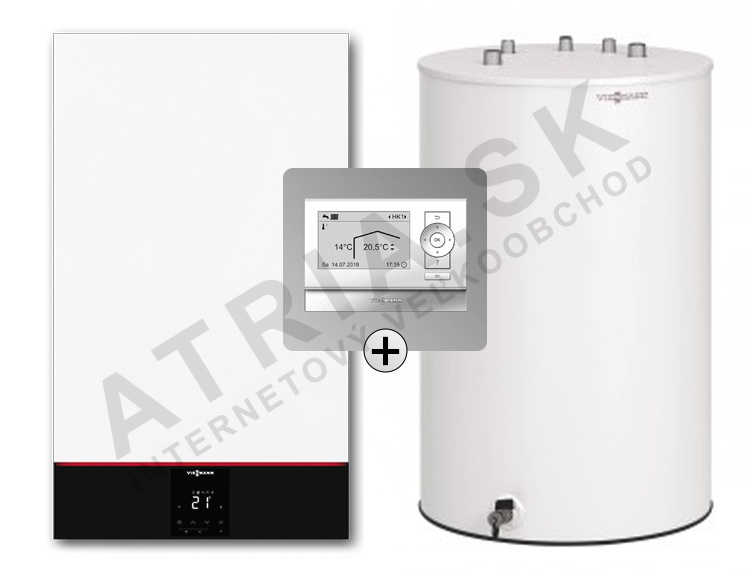

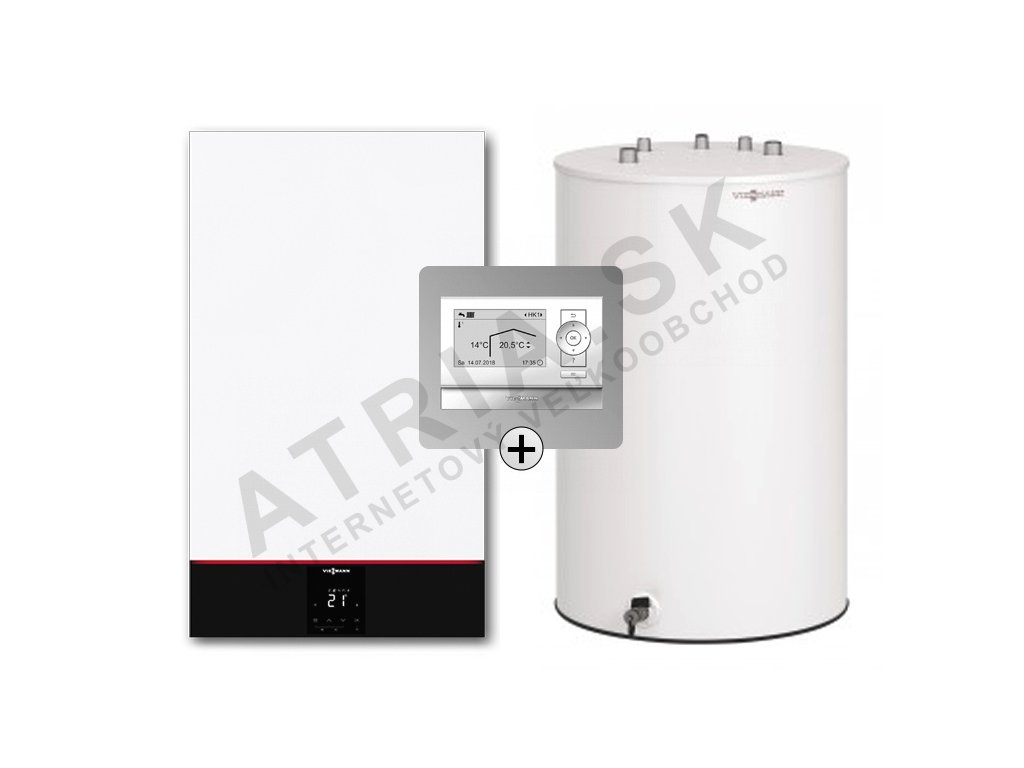

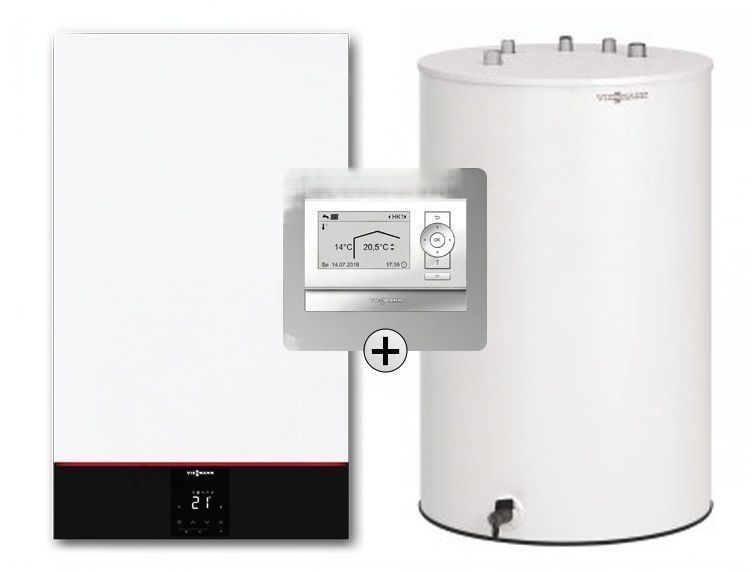

Viessmann Vitodens 100-W, 32 kW
+ Viessmann Vitodens 100-W32 kW
+ Vitocell 100-W type CUGB150 liters

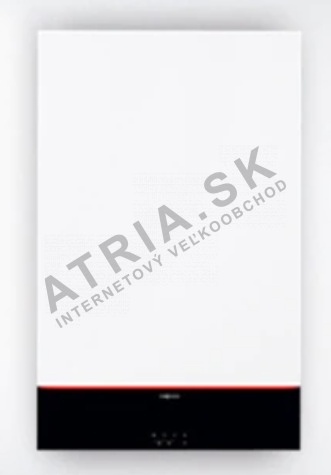

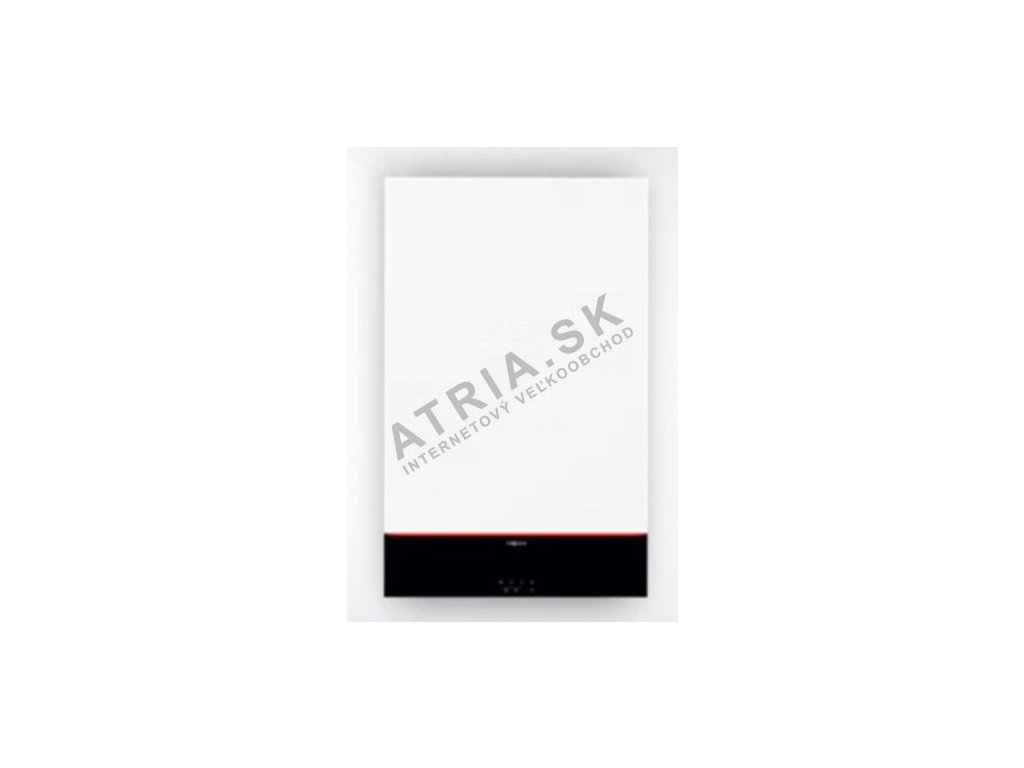

VIESSMANN VITODENS 100-W, 32 kW
- wall-mounted condensing combi boiler with storage tank connection
- output:3.2 - 32 kW

The Vitodens 100-W wall-mounted gas is ideally suited for apartments or houses. It can be easily mounted on the wall in corners of bathrooms or also chambers. The Vitodens 100-W can also find its place above the work area, washing machine or dryer. For someone who is keen on economy and durability, only as a material is an option. That's why the Vitodens 100-W boiler is also equipped with an heating surface made of stainless , which offers the necessary reliability and guarantees a consistently high degree of combustion heat utilisation.

Features of the VITODENS 100-W

MatriX-Plus burner

The MatriX-Plus burner scores particularly well for its efficient operation as well as its low pollutant and noise emissions. The special MatriX stainless steel surface is resistant to high temperatures and ensures reliable performance and a long service life.

Lambda Pro

Another technical innovation from Viessmann is the Lambda Pro fully automatic combustion control. It adapts itself to all types of gases and every flue gas system. This ensures clean and efficient combustion. It also includes self-adaptation of the flue gas extraction.

Stainless Steel Inox-Radial Heat Exchanger: Efficient with long life

The rust is always in stainless steel. The corrosion-resistant Inox-Radial stainless steel heat exchanger is at the heart of the Vitodens 100-W. It converts the input energy into heat particularly efficiently. Virtually lossless, with an efficiency level of 98 percent that can hardly be surpassed. And this together with the safety of high-quality stainless steel with an extremely long service life.

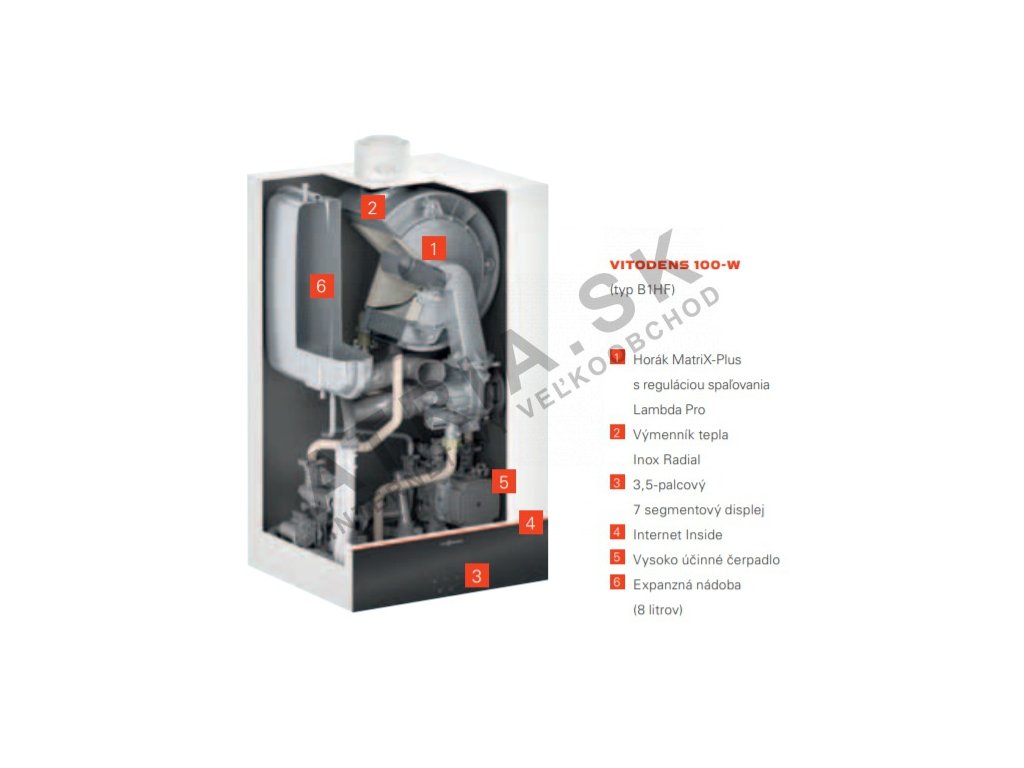

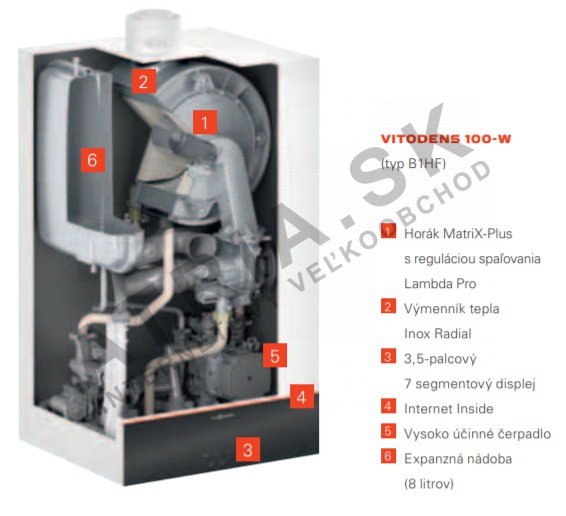

OUTLINE VITODENS 100-W

1. MatriX-Plus burner with Lambda Pro Plus combustion control

2.Inox-Radial heat exchanger

3. 3.5-inch 7-segment with touch button controls

4. Inside

5. High Efficiency

6. tank (8 liters)

SINGLE SERVICE

The

3.5-inch 7-segment touchscreen display of the new electronic platform features very simple and easy-to-understand operation and an understated Blackpanel design. It allows very comfortable setting of heating devices with direct and/or mixed heating circuits.

ViCare APPLICATION

The Vitodens wall-mounted gas condensing boilers with the new electronic platform have an integrated interface. This allows direct connection to the internet as required. Through the ViCare app, the operation of the is quite simple and intuitive. It creates a link to the digital service and is in direct contact with a local expert partner.

ViCare uses the function of the mobile phone on demand and thus detects the distance to the heater. If the set distance is exceeded, the is automatically reduced. You can also add a ViCare thermostat to the system to enjoy even greater comfort and efficiency.

The app offers the following features:

● You have a real-time overview of the status of the entire system.

● Move your finger to select the desired room temperature.

● Set the desired hot water temperature.

● With the heating time assistant, you can set the switching times for heating and hot water in several steps.

● Display of the current outdoor temperature.

● Display the temperature history for the last few days.

The ViCare app gives you an overview of the current operating status of your heating system. This gives you security and makes everything more predictable for you. This allows you to program different switching times for each day according to your needs.

In addition, you can select normal or party-mode in the app. Party-mode can extend your heating time when you have a longer party with guests and want to keep warm for longer. There is also a rquick-select savings mode. It lowers the temperature when you are out of the house. Not to mention a one-time charge of hot water if you want to take a long bath.

Normal and party-mode is available for users with both Android and Apple devices. Be aware that your heating system control must support this feature.

Current equipment status and direct connection to an experienced expert

In addition, the ViCare app offers automated reports with an up-to-date description of the status of your device. This way you can identify early on if there is a problem or if everything is fine. Similarly, via the ViCare app you have a direct line to an expert partner as soon as a message appears on the heating device.

Possible error messages are easily recognizable. Because the ViCare app works via a traffic light system:

● Green: Everything is OK.

● Yellow: Maintenance is required.

● Red: A problem has occurred.

If the field is red, you will automatically see the contact details of the expert partner. For this function, you only need to select the details of the selected expert partner and save them in the application. Another option is to connect the expert partner directly to the heating system. This requires a service authorisation. You can do this with just two clicks. This allows the expert partner to detect faults early and possibly even repair them remotely or come to you with the right spare parts.

Installing ViCare

Installing the ViCare app is easier than you think.

The following assumptions hold:

● Internet connection (time and volume independent data plan).

● Smartphones with Apple or Google Android (the current version must be downloaded from the respective store).

● Internet interface Viessmann Vitoconnect 100, type OPTO 1.

● Viessmann gas appliances installed since 2004, heat pumps installed since 2010 and solid fuel heating appliances installed since 2016. Please contact your authorised specialist partner for precise compatibility information.

Once the ViCare system is installed and released, the expert partner of your choice will be able to supervise your system using the Vitoguide app.

TERMOSTAT ViCare

You can also expand the system with a ViCare digital thermostat and enjoy even more comfort and efficiency.

Note: Thermostat not included, can be ordered.

Benefits:

Extremely attractive price/performance ratio
Long-lasting and efficient thanks to the Inox-Radial stainless steel heat exchanger
MatriX-Plus burner with Lambda Pro combustion control for consistently high efficiency and low emission values
Easy and intuitive operation via 3.5-inch 7-segment display and touch buttons, and also alternatively via mobile terminal
Internet connectivity via integrated WiFi interface for operation and service via Viessmann apps
Certified for 20% hydrogen content in natural gas

PARAMETERS

Nominal heat output	Vitodens 100-W
50/30 °C (kW)	3.2 - 32.0
80/60 °C (kW)	2.9 - 29.3
Dimensions
length (mm)	360
width (mm)	400
Height (mm)	700
Weight (kg)	33
Flue connection (Ø mm)	60
Supply air connection (Ø mm)	100
Potable water heating output (kW)	34.9
Energy efficiency class	A

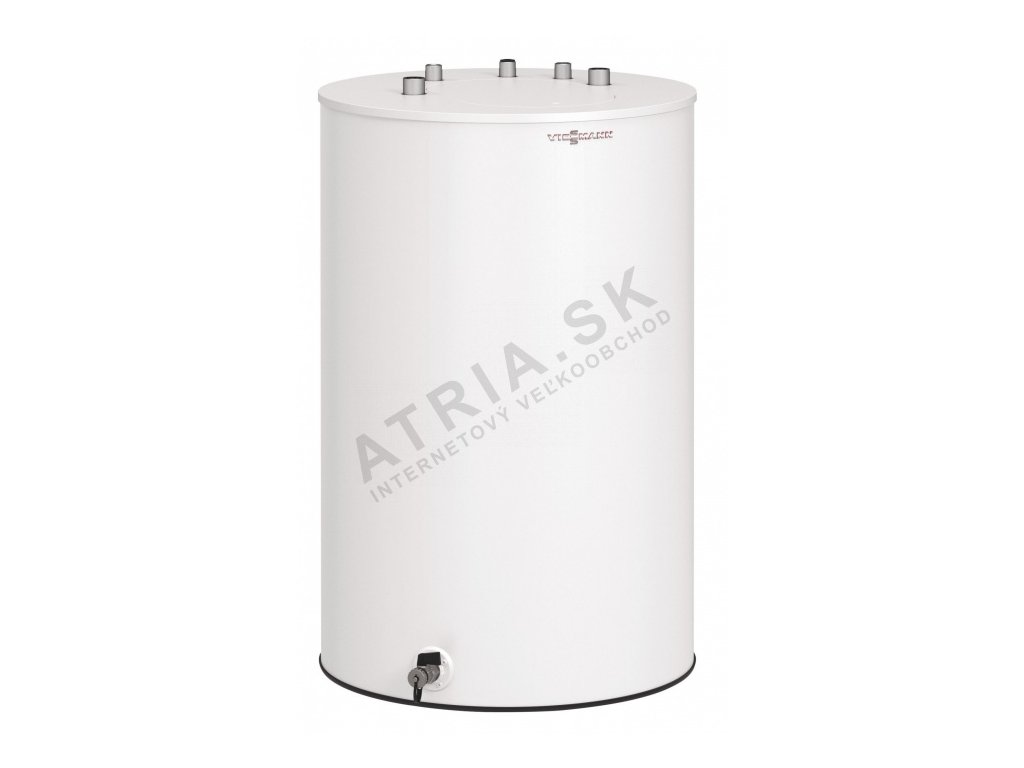

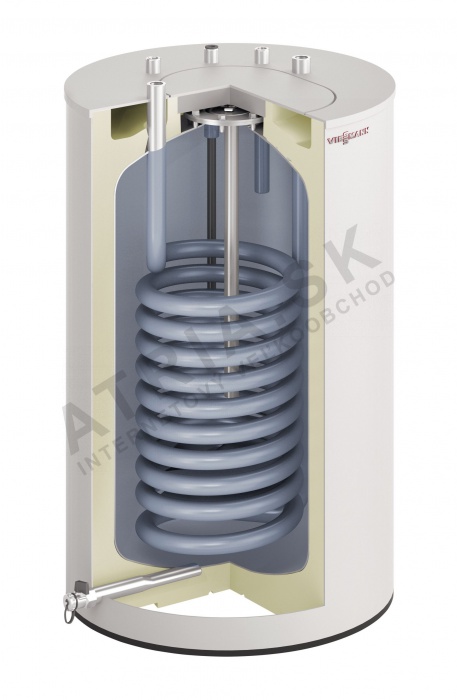

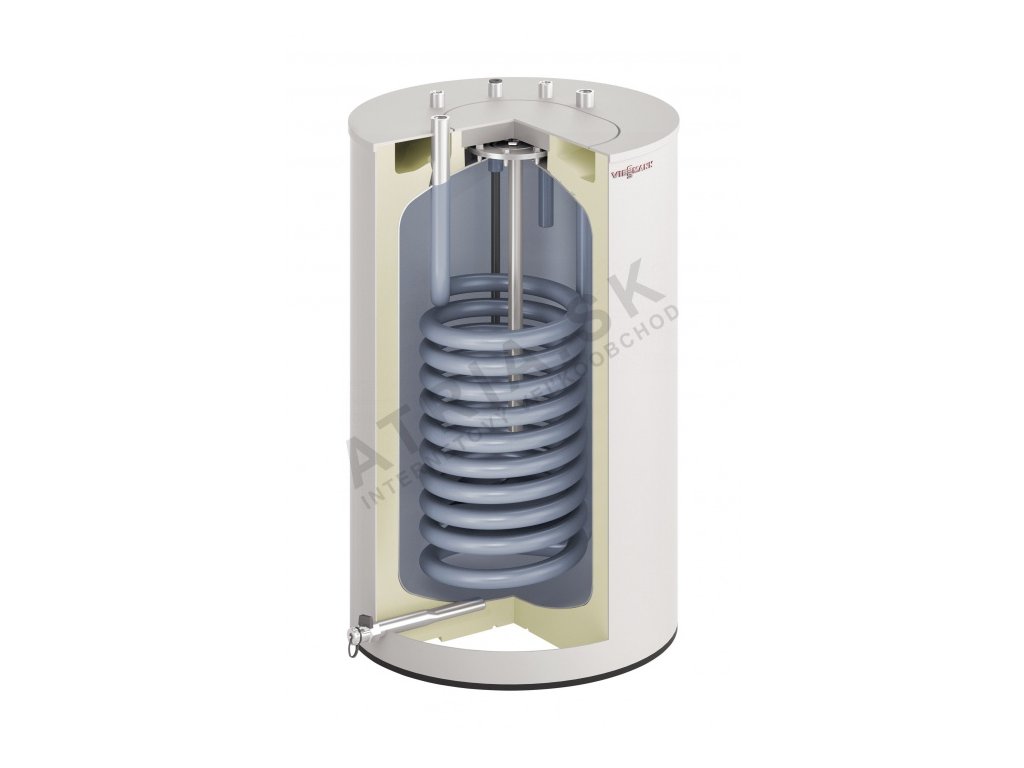

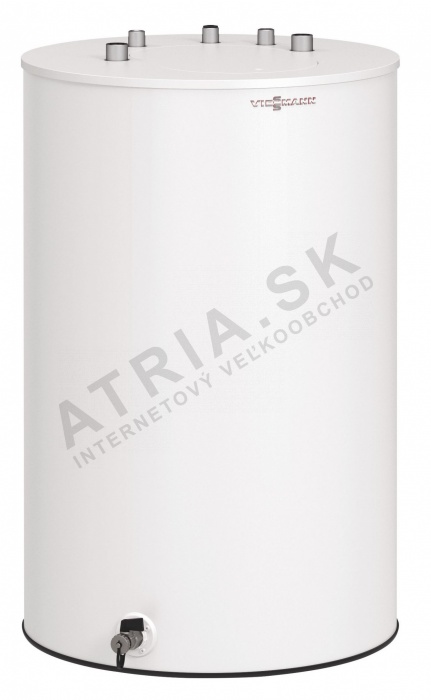

VIESSMANN VITOCELL 100-W
- hot water tank
- type: CUGB
- volume:150 liters

Favorable acquisition cost - reliable operation. The attractively priced Vitocell 100-W storage tank is available colour-coordinated for above or below installation.

Benefits:

Corrosion-protected steel reservoir container with Ceraprotect protective enamel.
Additional cathodic protection with magnesium anode, foreign current anode available as an option.
Heating of the entire water content by a heating coil running deep to the bottom of the tank
Low thermal sides due to perfect full-surface insulation
Welded immersion sleeve for tank temperature sensor
Built-in safety and drain valve
Built-in height adjustable feet
Equipment meets EU standards for ECO Design - Energy Class B

PARAMETERS

Capacity: 150 l

Maximum heating temperature: 110 °C

Maximum DHW temperature: 95 °C

Maximum DHW pressure: 10 bar

Maximum heating pressure:10 bar

Temperature difference:1.04 kWh/24 h

Hot water connection: R 3/4"

Heating water connection: R 1"

Circulation connection: R 3/4"

Height: 957 mm

Diameter: 635 mm

Weight: 61 kg

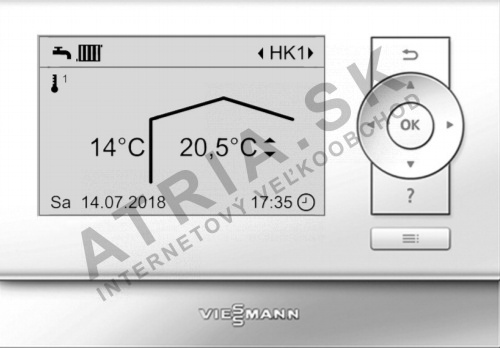

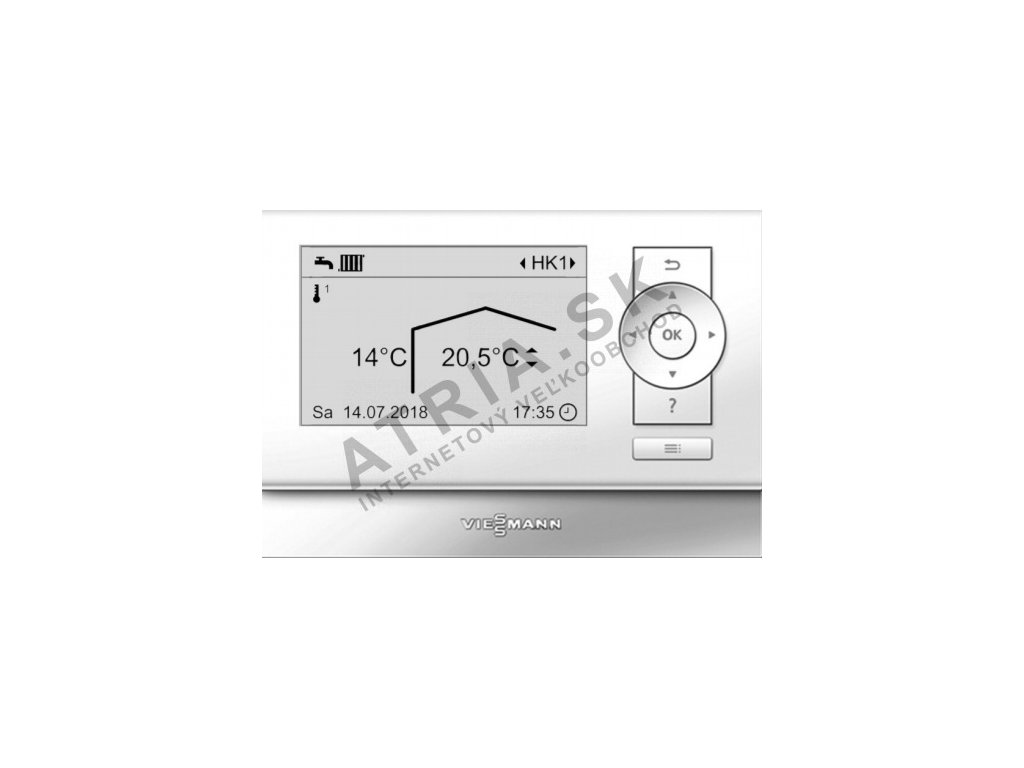

VIESSMANN VITOTROL 200-E

Vitotrol 200-E is a wired that can be installed in any living space.

Features:

Time programs for up to 4 heating circuits and hot water tanks
with convenience features such as a holiday programme
presetting the desired temperature for DHW temperature and up to 3 setpoints for room temperature
with integrated room temperature sensor for room temperature activation (only for one heating circuit with mixer)
with illuminated graphic display to indicate outdoor temperature, room temperature and operating conditions

SUPPLY:

Vitotrol 200-E for connection to the heating system, for wall mounting
Low voltage plug, 2-pin socket

CONNECTION:

Cable communication via PlusBus connection
two-wire cable, cable length max. 50 m (also when connecting multiple remotes)
two-core cable at the installation site, minimum cross-section 0.75 mm2, total length of the PlusBus cable is max. 50 m
a maximum of two Vitotrol 200-E remotes can be connected
the cable must not be laid together with 230/400 V cables
low voltage plug included

PARAMETERS

	Vitotrol 200-E
Communication	cable
Controls	digital
Color	white
Features	with daily program, water heating control, boiler fault indication, with weekly program
Warranty	2 years

Additional parameters

Category:	so 150 litrovým zásobníkom
Warranty:	2 years
Weight:	40 kg
Automatický diagnostický systém:	áno
Číslo CE:	1312BV5392
Dodávané príslušenstvo:	elektrický kábel, sifón, návod, záručný list
Elektrická trieda:	I
Elektronické zapaľovanie:	áno
? Expanzná nádoba:	8 litrová
Hmotnosť prázdneho kotla:	33
Hodnota spalín CO:	98 ppm / 105 mg/kWh
Hodnota spalín CO2:	105 %
Horný výkon kotla:	32 kW
Intenzita prúdu:	0,75 A
Krajina pôvodu:	EU
Možnosť nastavenia výkonu čerpadla:	áno
Možnosť prevádzky bez termostatu:	áno
Možnosť pripojenia bezdrôtového termostatu:	áno
Možnosť rozšírenej záruky:	áno
Možnosť úpravy výkonu kotla:	áno
Napájací tlak plynu:	20 mbar/ 0,002 MPa, 37 mbar/ 0,0037 MPa
Nastaviteľný rozsah teploty VV:	10 - 80 °C
Normovaný stupeň využitia pri 40/30 °C:	max. 108,4 %
Palivo:	zemný plyn / propán
Poistka:	2 A
Prevedenie komína:	TURBO
Priebeh zmeny výkonu:	modulovaný
Príkon:	97 W
Pripojenie el. napätia:	230V
Prípojka TUV:	1/2"
Prípojka vody:	3/4"
Propán G31 - prietok plynu pri maximálnom výkone v režime teplej vody:	1,98 kg/h
Propán G31 - prietok plynu pri maximálnom výkone v režime vykurovania:	1,44 kg/h
Propán G31 - prietok plynu pri minimálnom výkone:	0,40 kg/h
Rozmery:	360 x 400 x 700mm
Spodný výkon kotla:	3,2 kW
Spustenie kotla:	servisným technikom VIESSMANN
Určenie kotla:	kotol v zostave so 150 l zásobníkom
Vážená hodnota NOx:	22,0 ppm / 39,9 mg/kWh
Večný plamienok:	nie
Veľkosť zásobníka TÚV:	150 l
Výkon pri tepl. spáde 50/30 °C:	3,2 - 32,0 kW
Výkon pri tepl. spáde 80/60 °C:	2,9 - 29,3 kW
Zemný plyn G20 - prietok plynu pri maximálnom výkone v režime teplej vody:	2,70 m3/h
Zemný plyn G20 - prietok plynu pri maximálnom výkone v režime vykurovania:	1,96 m3/h
Zemný plyn G20 - prietok plynu pri minimálnom výkone:	0,54 m3/h
Výkon kotla na vykurovanie:	vysoký výkon nad 16 kW
Výrobca:	Viessmann
