Viessmann Vitodens 100-W, 19 kW + 100 l zásobník
Code: Z022934Related products
Product detailed description
VIESSMANN VITODENS 100-W, 19 kW
- wall-mounted condensing combi boiler with storage tank connection
- output:3.2 - 19 kW
- wall-mounted condensing combi boiler with storage tank connection
- output:3.2 - 19 kW
The Vitodens 100-W wall-mounted gas condensing boiler is ideally suited for apartments or houses. It can be easily mounted on the wall in corners of bathrooms or also chambers. The Vitodens 100-W can also find its place above the work area, washing machine or dryer. For someone who is keen on economy and durability, only stainless steel as a material is an option. That's why the Vitodens 100-W boiler is also equipped with an Inox-Radial heating surface made of stainless steel, which offers the necessary reliability and guarantees a consistently high degree of combustion heat utilisation.
Features of the VITODENS 100-W
MatriX-Plus burner
The MatriX-Plus burner scores points above all for its efficient operation as well as its low pollutant and noise emissions. The special MatriX stainless steel surface is resistant to high temperatures and ensures reliable performance and a long service life.
Another technical innovation from Viessmann is the Lambda Pro fully automatic combustion control. It adapts itself to all types of gases and every flue gas system. This ensures clean and efficient combustion. It also includes self-adaptation of the flue gas extraction.
Stainless Steel Inox-Radial Heat Exchanger: Efficient with long life
The rust is always in stainless steel. The corrosion-resistant Inox-Radial stainless steel heat exchanger is at the heart of the Vitodens 100-W. It converts the input energy into heat particularly efficiently. Virtually lossless, with an efficiency level of 98 percent that can hardly be surpassed. And this together with the safety of high-quality stainless steel with an extremely long service life.
OUTLINE VITODENS 100-W
1. MatriX-Plus burner with Lambda Pro Plus combustion control
2.Inox-Radial heat exchanger
3. 3.5-inch 7-segment display with touch button controls
4. Internet Inside
5. High Efficiency Pump
6. Expansion tank (8 liters)
SINGLE SERVICE
3.5-inch 7-segment touchscreen display of the new electronic platform features very simple and easy-to-understand operation and an understated Blackpanel design. It allows very comfortable setting of heating devices with direct and/or mixed heating circuits.
ViCare APPLICATION
The Vitodens wall-mounted gas condensing boilers with the new electronic platform have an integrated WiFi interface.This allows direct connection to the internet as required. Through the ViCare app, the operation of the heating system is quite simple and intuitive. It creates a link to the digital service and is in direct contact with a local expert partner.
ViCare uses the GPS function of the mobile phone on demand and so detects the distance to the heater. If the set distance is exceeded, the room temperature is automatically reduced. You can also add a ViCare thermostat to the system to enjoy even greater comfort and efficiency.
The app offers the following features:
● You have a real-time overview of the status of the entire system.
● Move your finger to select the desired room temperature.
● Set the desired hot water temperature.
● With the heating time assistant, you can set the switching times for heating and hot water in several steps.
● Display of the current outdoor temperature.
● Display the temperature history for the last few days.
The ViCare app gives you an overview of the current operating status of your heating system. This gives you security and makes everything more predictable for you. This allows you to program different switching times for each day according to your needs.
In addition, you can select normal or party-mode in the app. Party-mode can extend your heating time when you have a longer party with guests and want to keep warm for longer. There is also a rquick-select savings mode. It lowers the temperature when you are out of the house. Not to mention a one-time charge of hot water if you want to take a long bath.
Normal and party-mode is available for users with both Android and Apple devices. Be aware that your heating system control must support this feature.
Current equipment status and direct connection to an experienced expert
In addition, the ViCare app offers automated reports with an up-to-date description of the status of your device. This way you can identify early on if there is a problem or if everything is fine. Similarly, via the ViCare app you have a direct line to an expert partner as soon as a message appears on the heating device.
Possible error messages are easily recognizable. Because the ViCare app works via a traffic light system:
● Green: All is well.
● Yellow: Maintenance is required.
● Red: A problem has occurred.
If the field is red, you will automatically see the contact details of the expert partner. For this function, you only need to select the details of the selected expert partner and save them in the application. Another option is to connect the expert partner directly to the heating system. This requires a service authorisation. You can do this with just two clicks. This allows the expert partner to detect faults early and possibly even repair them remotely or come to you with the right spare parts.
Installing ViCare
Installing the ViCare app is easier than you think.
The following assumptions apply:
● Internet connection (time and volume independent data plan).
● Smartphones with Apple iOS or Google Android operating system (the current version must be downloaded from the respective store).
● Internet interface Viessmann Vitoconnect 100, type OPTO 1.
● Internet interface Viessmann Vitoconnect 100, type OPTO 1.● Viessmann gas appliances installed since 2004, heat pumps installed since 2010 and solid fuel heating appliances installed since 2016. Please contact your authorised specialist partner for precise compatibility information.
Once the ViCare system is installed and released, the expert partner of your choice will be able to supervise your system using the Vitoguide app.
TERMOSTAT ViCare
You can also expand the system with a ViCare digital thermostat and enjoy even more comfort and efficiency.
Note: Thermostat not included, can be ordered.
Benefits:
- Extremely attractive price/performance ratio
- Long-lasting and efficient thanks to the Inox-Radial stainless steel heat exchanger
- MatriX-Plus burner with Lambda Pro combustion control for consistently high efficiency and low emission values
- Easy and intuitive operation via 3.5-inch 7-segment display and touch buttons, and also alternatively via mobile terminal
- Internet connectivity via integrated WiFi interface for operation and service via Viessmann apps
- Certified for 20% hydrogen content in natural gas
PARAMETERS
| Nominal heat output | Vitodens 100-W |
| 50/30 °C (kW) | 3.2 - 19.0 |
| 80/60 °C (kW) | 2.9 - 17.5 |
| Dimensions | |
| length (mm) | 360 |
| width (mm) | 400 |
| Height (mm) | 700 |
| Weight (kg) | 33 |
| Flue connection (Ø mm) | 60 |
| Supply air connection (Ø mm) | 100 |
| Potable water heating output (kW) | 27.3 |
| Energy efficiency class | A |

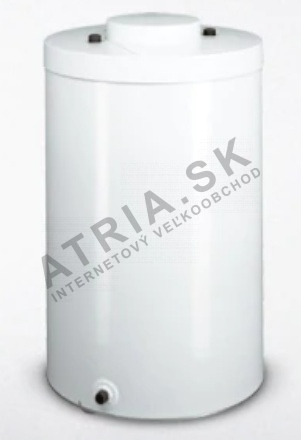

VIESSMANN VITOCELL 100-W
- hot water tank
- type:CUGA
- volume:100 liters
- hot water tank
- type:CUGA
- volume:100 liters
Favorable acquisition cost - reliable operation. The attractively priced Vitocell 100-W is available colour-coordinated for above or below installation.
Benefits:
- Corrosion-protected steel reservoir container with Ceraprotect protective enamel.
- Additional cathodic protection with magnesium anode, foreign current anode available as an option.
- Heating of the entire water content by a heating coil running deep to the bottom of the tank
- Low thermal sides due to perfect full-surface insulation
OUT PRODUCT VITOCELL 100-W
A Revision and cleaning opening
B Highly efficient all-perimeter thermal insulation
D Storage tank with corrosion protection, steel and Ceraprotect enamelling
PARAMETERS
| VITOCELL 100-W | |
| Storage volume | 100L |
| Heating water volume | 6 l |
| Gross volume | 106 l |
| Connections | |
| Heating water supply and return branch | R 1" |
| hot and cold water | R 3/4" |
| Circulation | R 3/4" |
| Admissible operating pressure | |
| -on the heating water side | 10 bar |
| - on the drinking water side | 1 MPa |
| Admissible temperatures | |
| -on the heating water side | 160 °C |
| -on the drinking water side | 95 °C |
| standby losses | 1.49 kWh/24 h |
| Dimensions | |
| length | 574 mm |
| width /diameter/ | 553 mm |
| Height | 836 mm |
| Weight | 51 kg |
| Heating area | 0.9 m2 |
| Energy efficiency class | C |
Additional parameters
| Category: | so 100 litrovým zásobníkom |
|---|---|
| Warranty: | 2 years |
| Weight: | 40 kg |
| Automatický diagnostický systém: | áno |
| Číslo CE: | 1312BV5392 |
| Dodávané príslušenstvo: | elektrický kábel, sifón, návod, záručný list |
| Elektrická trieda: | I |
| Elektronické zapaľovanie: | áno |
| ? Expanzná nádoba: | 8 litrová |
| Hmotnosť prázdneho kotla: | 33 |
| Hodnota spalín CO: | 98 ppm / 105 mg/kWh |
| Hodnota spalín CO2: | 105 % |
| Horný výkon kotla: | 19 kW |
| Intenzita prúdu: | 0,75 A |
| Krajina pôvodu: | EU |
| Možnosť nastavenia výkonu čerpadla: | áno |
| Možnosť prevádzky bez termostatu: | áno |
| Možnosť pripojenia bezdrôtového termostatu: | áno |
| Možnosť rozšírenej záruky: | áno |
| Napájací tlak plynu: | 20 mbar/ 0,002 MPa, 37 mbar/ 0,0037 MPa |
| Normovaný stupeň využitia pri 40/30 °C: | max. 108,4 % |
| Palivo: | zemný plyn / propán |
| Poistka: | 2 A |
| Prevedenie komína: | TURBO |
| Priebeh zmeny výkonu: | modulovaný |
| Príkon: | 88 W |
| Pripojenie el. napätia: | 230V |
| Prípojka TUV: | 1/2" |
| Prípojka vody: | 3/4" |
| Propán G31 - prietok plynu pri maximálnom výkone v režime teplej vody: | 1,98 kg/h |
| Propán G31 - prietok plynu pri maximálnom výkone v režime vykurovania: | 1,44 kg/h |
| Propán G31 - prietok plynu pri minimálnom výkone: | 0,40 kg/h |
| Rozmery: | 360 x 400 x 700mm |
| Spodný výkon kotla: | 3,2 kW |
| Spustenie kotla: | servisným technikom VIESSMANN |
| Určenie kotla: | kotol v zostave so 100 l zásobníkom |
| Vážená hodnota NOx: | 22,0 ppm / 39,9 mg/kWh |
| Večný plamienok: | nie |
| Veľkosť zásobníka TÚV: | 100 l |
| Výkon pri tepl. spáde 50/30 °C: | 3,2 - 19,0 kW |
| Výkon pri tepl. spáde 80/60 °C: | 2,9 - 17,5 KW |
| Zemný plyn G20 - prietok plynu pri maximálnom výkone v režime teplej vody: | 2,70 m3/h |
| Zemný plyn G20 - prietok plynu pri maximálnom výkone v režime vykurovania: | 1,96 m3/h |
| Zemný plyn G20 - prietok plynu pri minimálnom výkone: | 0,54 m3/h |
| Výkon kotla na vykurovanie: | vysoký výkon nad 16 kW |
| Výrobca: | Viessmann |
