Vaillant VU 25CS/1-7 ecoTEC exclusive IoniDetect + VIH R 120 A + sensoCOMFORT 720 + sensoNET VR 921
Code: 0010039695Related products
Product detailed description
Vaillant VU 25CS/1-7 ecoTEC exclusive IoniDetect
+ ecoTEC exclusive IoniDetect+ uniSTOR VIH R 120 A - hot water storage tank
+ sensoCOMFORT 720- equithermic controller
+ ecoTEC exclusive IoniDetect+ uniSTOR VIH R 120 A - hot water storage tank
+ sensoCOMFORT 720- equithermic controller
+ aesthetically pleasing isolation covers and spacer
+ original chrome plated fuse group for tray
Note:The connection between the boiler and the storage tank is not included in the assembly.

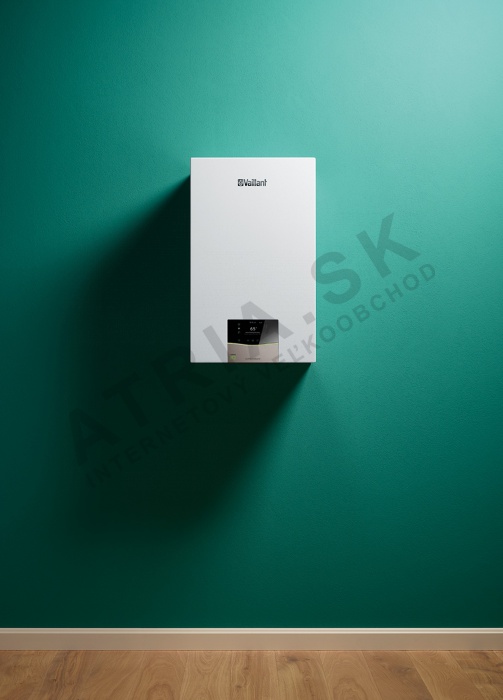

VAILLANT VU 25CS/1-7 ecoTEC exclusive IoniDetect
- wall hung condensing boiler
- capacity:2.5 - 25.0 kW
Degree of modulation 1:10
Hang-on condensing boiler for natural gas (propane) heating with flue gas exhaust through the wall, roof, or through a shaft or skylight.
New generation condensing technology
The ecoTEC exclusive gas boiler offers condensing technology with many intelligent features in a modern design. The compact wall-mounted unit is specifically designed for use in family homes and represents an investment in the future, whether it is a new build or an upgrade to your old heating system.
Be prepared for possible fluctuations in gas composition
At the heart of the new generation of ecoTEC exclusive boilers is the IoniDetect intelligent combustion control. As the system automatically detects different gas types and properties, the combustion system optimises itself for maximum energy yield. So you don't have to worry if the composition of the supplied gas changes in the future, your boiler will automatically adapt.
Recognised by Green iQ as the technology of the future
The ecoTEC exclusive gas boiler is an investment in green heating. It carries our Green iQ brand, which stands for the highest standards of sustainable technology and smart connectivity. All Green iQ products can be connected via WLAN and, thanks to compatible technical interfaces, can also be conveniently controlled on the move using smartphones or tablets.
The Green iQ brand also stands for resource-saving production and the use of high-quality recyclable materials from carefully controlled sources.
Design for intuitive operation
The attractive design of the new ecoTEC exclusive boiler will catch your eye at first glance. Its clean, crisp lines and illuminated black-coloured display are the hallmark of a new era of gas condensing boilers.
Not only does it integrate seamlessly into your home, operation is also more intuitive than ever. The boiler's enhanced user interface with touch controls, scrolling controls and full text display allows you to operate the appliance without fear of making a mistake. All relevant functions are clearly structured and easy to understand - for quick navigation and setup.
Convenient monitoring with touch control and app
Intelligent technology doesn't have to be complicated! All heating settings can be made directly on the device using the touch controls. Menu navigation is simple and clear, control is now even more convenient. For easy and intuitive control of the heating system from anywhere, simply combine the sensoNET internet communication module, which is included in the package, with the new sensoCOMFORT system controller. You get easy access to all the main control functions via the free sensoAPP app. Even when you're not at home.
Flexible expansion options for increased efficiency and convenience

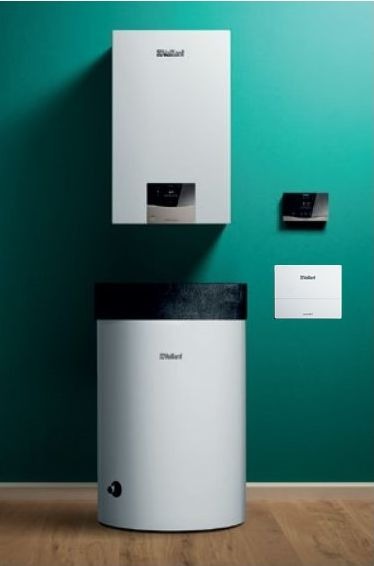

The ecoTEC exclusive gas boiler offers a wide range of options for heating system extensions. Combine your boiler with one of Vaillant's wide range of hot water cylinders. The design of the new uniSTOR hanging storage tanks fits perfectly with the new ecoTEC exclusive boiler. And although it takes up minimal space, it can cover even the highest hot water requirements. The sensoCOMFORT system controller controls hot water production and up to nine mixed heating circuits. This enables extensions such as heat pumps, solar systems or ventilation with heat recovery.
PARAMETERS
Heating capacity range at 80/60 °C: 2.5 - 25 kW
Heating power range at 50/30 °C: 2.8 - 27 kW
Max. 85 °C
Heating energy efficiency class (A+++ - D): A
Max. 26 kW
Max. electrical input: 55 W
Max. 0.3 MPa (3 bar)
Water outlet/inlet connection: G 3/4"
Gas connection: Ø 20
Dimensions (height x width x depth): 720/440/348 mm
Weight: 33 kg

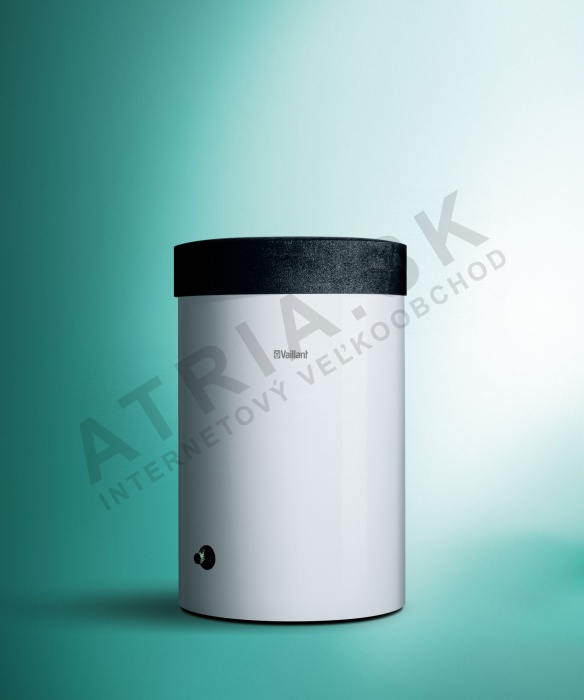

VAILLANT uniSTOR VIH R 120 A+
- indirect heated stationary TV storage tank
- indirect heated stationary TV storage tank
- with enamel surface protection against corrosion
- volume: 117 l
- volume: 117 l
Product Characteristics
- energy class A+
- steel stationary TV tray
- designed for wall hung or stationary boilers
- stationary design
- high quality insulation class A+
- drain valve
- adjustable balancing screws
- heating coil and heating coil are enamelled on the inside
- built-in protective magnesium anode
Parameters
- Nominal volume: 117 l
- Temperature-bearing area of heat exchanger: 0.7 m2
- Exchanger water volume: 4.8 l
- Maximum power: 30,9 kW
- Continuous DHW output: 527 l/h
- Heating time for DHW from 10 to 60 °C: 15.8 min
- Maximum DHW temperature: 85 °C
- Maximum heating water temperature: 110 °C
- Maximum operating pressure: 10 bar
- Heat loss: 1.0 kWh/24 h
- Exchanger connection: R 3/4"
- Hot water connection:R 1"
- Circulation connection:R 3/4"
- Height:853 mm
- Length:590 mm
- Weight: 68 kg
wifi connection: set precise temperatures, define time intervals down to the minute and use other special features such as absence mode.
Enhance your heating system with renewables

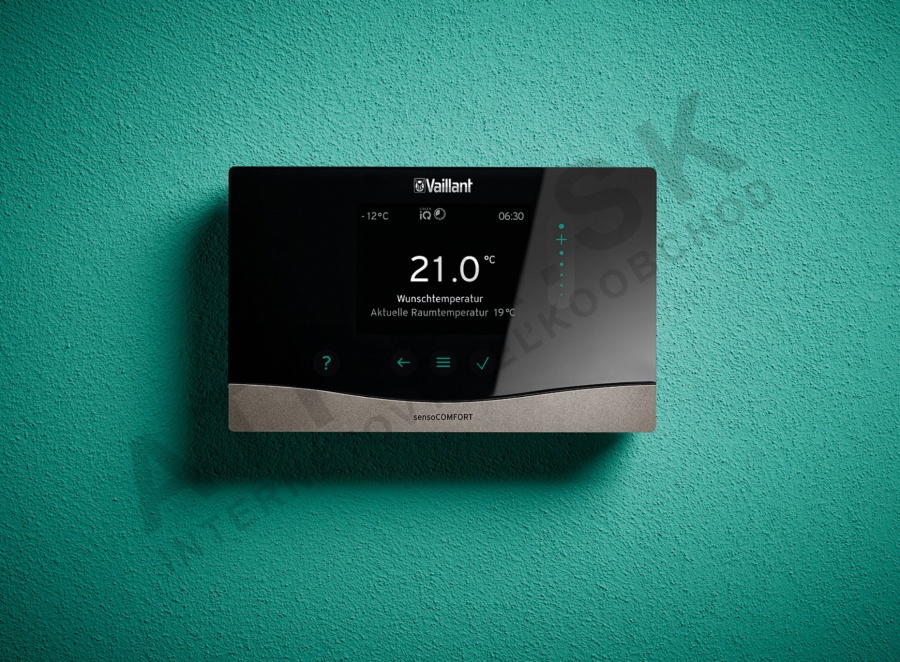

From solar systems to ventilation. With the sensoCOMFORT smart controller, you get future-ready system control. The controller is optimized to control all components of the heating system simultaneously and you can conveniently adjust the system according to your needs, e.g. domestic hot water. The sensoCOMFORT controller gives you the possibility to handle several heating circuits and therefore more complex heating systems, such as in multi-family houses.
Synchronised system design for maximum ease of use
Our new generation of gas boilers and controllers (including the sensoCOMFORT controller) have one thing in common:a harmonised menu structure, including the sensoAPP application. So, just by navigating one menu structure, you are familiar with all of them, which certainly makes operating your new heating system easier.
Designed for your modern home
A system controller should be a natural fit for your interior. The modern design is eye-catching and recognisable as it resembles modern smart devices. Thus, it integrates perfectly into modern living spaces. The same applies to our sensoAPP app. It follows on from the previous multiMATIC app - which won the Red Dot Design Award.
Parameters
- Energy efficiency class: II, VI, VIII
- Conversion: wireless
- Mounting: wall mounted
- eBUS interface: yes
- Gas boilers: yes
- Heat pumps: yes
- Hybrid systems: yes
- Number of boilers in cascade: 2 - 7
- Central ventilation: yes
- Solar heating: yes
- Number of heating circuits using expansion modules: 9
- Number of remote controls: 4
- Control via sensoAPP: yes
- Heating curve customization: yes
- Floor drying function: yes
- Humidity sensor: yes
- Installation assistant function: yes
- Time scheduling assistant function: yes
VAILLANT sensoNET VR 921 - Internet Communication Module

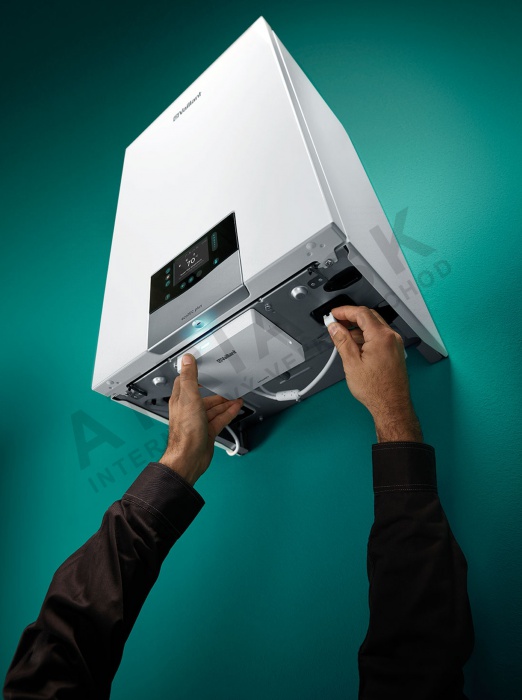

Connecting your heating system to the Internet is easier than ever. With the sensoNET module you get a compact internet module that connects to your boiler expressly and quickly with a plug-and-play system.
Versatile mobile control via sensoAPP
With the sensoNET module, you get a communication interface for convenient heating control using the sensoAPP app on your smartphone. Once the internet module is installed, it only requires a few clicks and you have complete mobile control of your system. This allows you to take your convenience regarding heating and hot water availability to the next level. Thanks to the common eBUS interface, the sensoNET internet module can be combined with new generation Vaillant boilers and controllers.

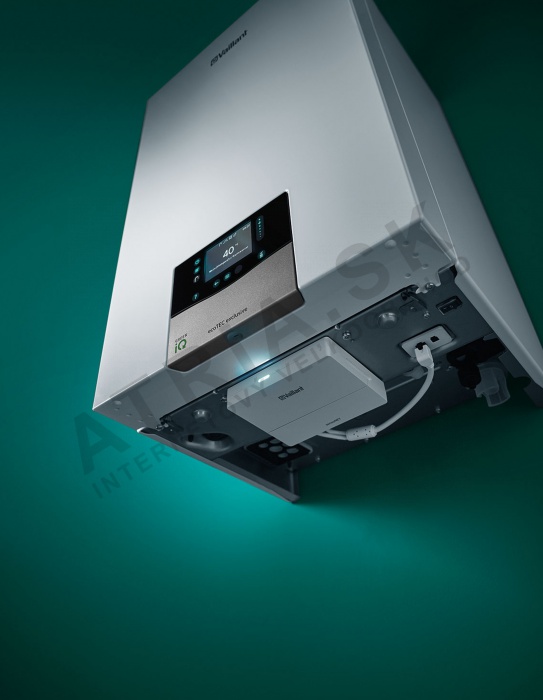

The sensoNET internet module can be conveniently mounted under the new ecoTEC exclusive and can be used only with sensoCOMFORT and sensoHOME controllers.
VDE-certified data safety
All Vaillant products are tested and approved by the VDE Institute, an independent and neutral European technical and scientific association that tests and certifies electrical equipment, components and systems. Products bearing the VDE mark have been independently assessed against international standards and legal protection requirements. You can therefore rest assured that Vaillant products are safe and protected to the highest standards.
