Thermona THERM 45 KD
Code: 1065Product detailed description

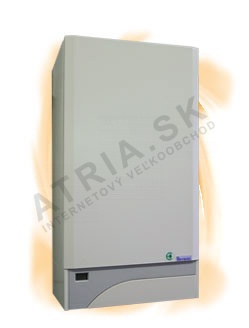

Condensing gas boiler Thermona THERM 45 KD with storage tank connection
Boiler with storage tank connection

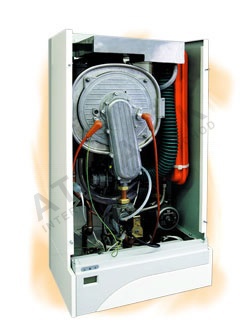

The boiler THERM 45 KD extends the successful series of condensing boilers, which have gained an excellent position on the market thanks to their high quality at a reasonable “Czech” price. The continuously modulating output of 13 - 45 kW with high efficiency of combustion and condensation process brings you maximum gas savings in buildings with higher heat demand. However, by using a new combustion chamber made of high-temperature plastic, the boiler maintains its small size, making it easier to adapt to its environment and aesthetics. The high-temperature plastic construction also better resists aggressive condensate and thus positively pushes the boiler's lifetime limit. A three-way valve can be fitted under the boiler, which makes it possible to solve the heating of hot water in an indirectly heated storage tank. Coaxial pipework with a diameter of 80/125 mm is used for venting.
The great advantage of the Therm 45 KD boilers is the possibility of connecting them to cascade boiler rooms. This provides a very economical and environmentally friendly solution for heating and hot water in larger buildings. This intelligent system of condensing cascade boiler rooms is also suitable for older housing construction, e.g. prefabricated houses, where it is one of the most effective revitalisations thanks to its proven qualities.
Technical Specifications | jed. | 45 KD | |
Fuel | ZP | ||
Appliance Categories | I2H | ||
Nominal heat input | kW | 42.5 | |
minimum heat input | kW | 12.25 | kW | 41.7 |
kW | 45 | ||
kW | 13 | ||
Gas Consumption | m3.h-1 | 1.28-4.52 | |
Max. heating system overpressure | bar | 3 | |
bar | 0.8 | ||
°C | 80 | ||
mm | 80/125 | ||
Average Flue Gas Temperature | °C | 50 | |
Effectiveness | % | 98-106 | |
NOx | 5 | ||
V/Hz | 230/50 | ||
IP 41(D) | |||
Environment according to CSN 33 20 00 - 3 | base AA5/AB5 | ||
boiler weight | kg | 45 | |
mm | 800/430/370 |
Additional parameters
Category: | Thermona |
---|---|
Warranty: | 2 years |
Produkt nahradený novým: | https://www.atria.sk/protherm-panther-condens-25-kko-model-2021/ |
