Rebrík rovný 500 x 1820

Code: 70912
118,14 € / pcs
1 týždeň

Detailed information

Product detailed description

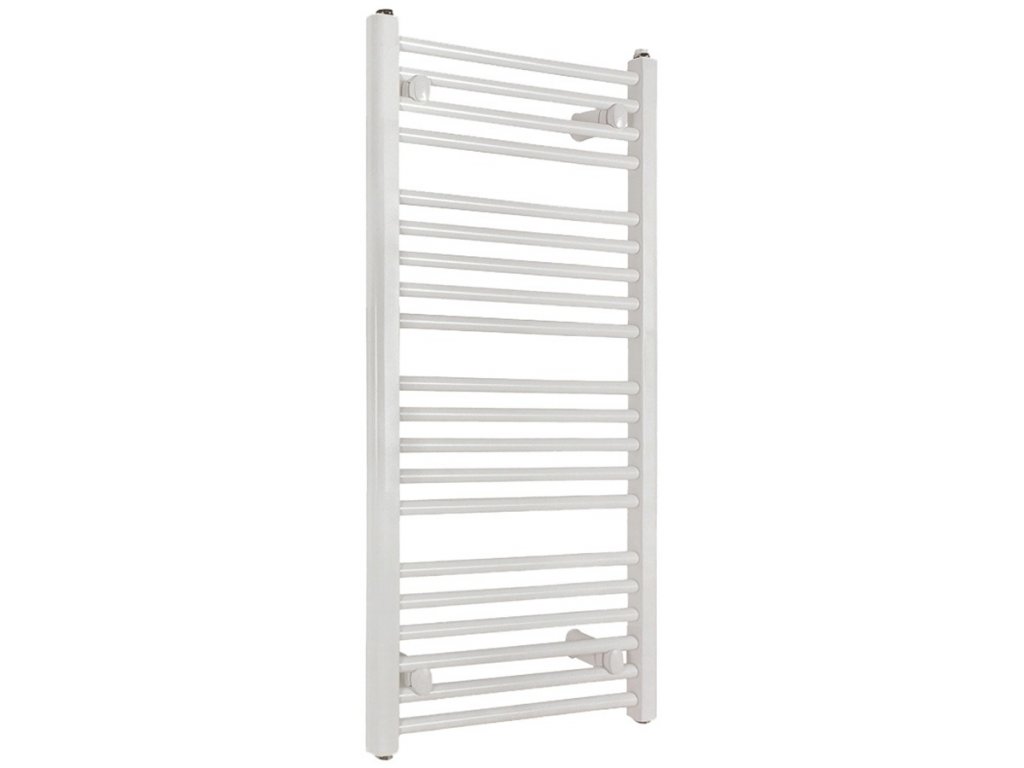

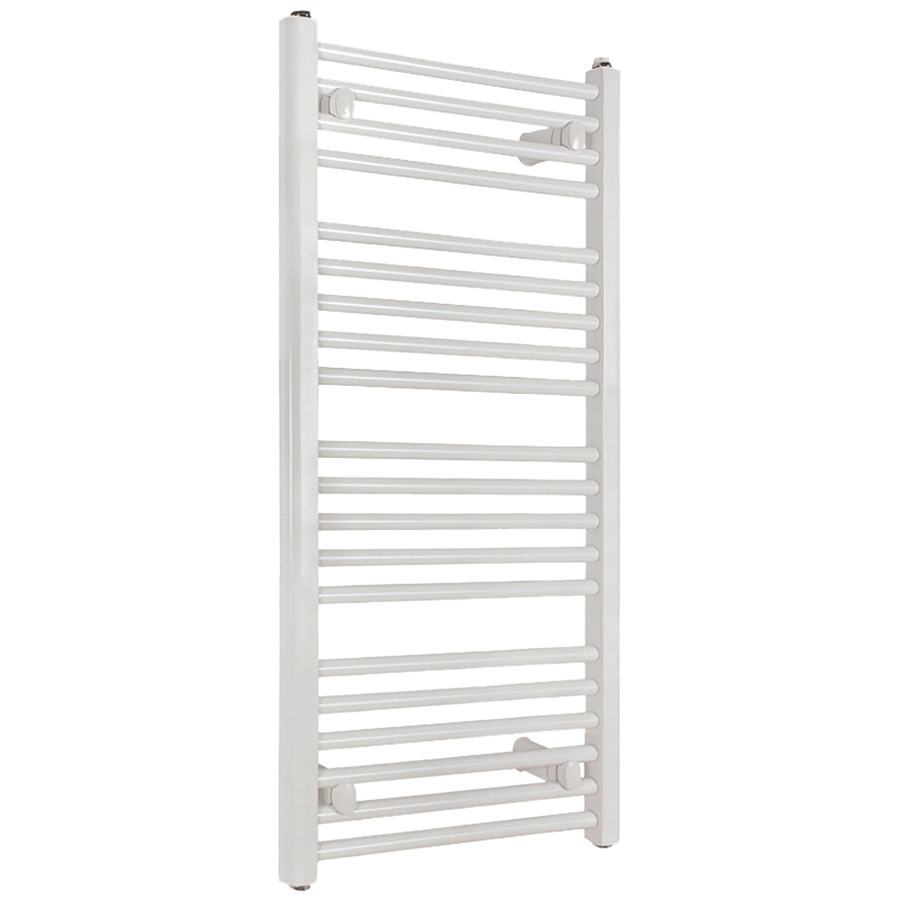

Heating ladder - straight white
- size: 500 x 1820 mm
- designed for heating bathrooms
- in combination with a boiler or purely electric heating

Quality bathroom ladder radiators, which are characterized by a modern appearance, an exceptional combination of aesthetics, functionality and comfort. Ladder radiators fulfill the basic function of heating elements.


Equipment and benefits:
straight metal ladder radiator - width 500 mm
made of low carbon steel
vertical D - profiles 40 x 30 mm
horizontal heating pipes with a diameter of 20 mm guarantee a high flow of the heat-carrying medium
the layout of the heating pipes allows easy hanging of textiles for drying
reinforced walls of heating pipes and profiles guarantee a long service life
high-quality injection guarantees high resistance to corrosion
the possibility of installing an electric coil from both sides
flexible hanging on the wall using the installation kit that is included in the delivery
installation kit includes four pieces of plastic brackets, mounting brackets, vent plugs, washers

The use:
heating of residential and non-residential premises
heating of bathrooms, kitchens, toilets, corridors of sanitary rooms, etc.
drying towels, clothes, various types of textiles
main or backup heat source
heating through hot water central heating
possibility of central heating in combination with electric heating outside the heating season
suitable for systems with forced circulation as well as self-gravity heating water circulation systems
use in the home, in accommodation facilities, businesses, etc.
suitable for the use of heating water or other heat-carrying medium
suitable for installation in a humid environment
hanging installation on the wall by means of a set with brackets
elegant design suitable for any interior

Note: The electric coil is not included in the delivery. In case of use with an electric coil, it is necessary to purchase a plug as well.

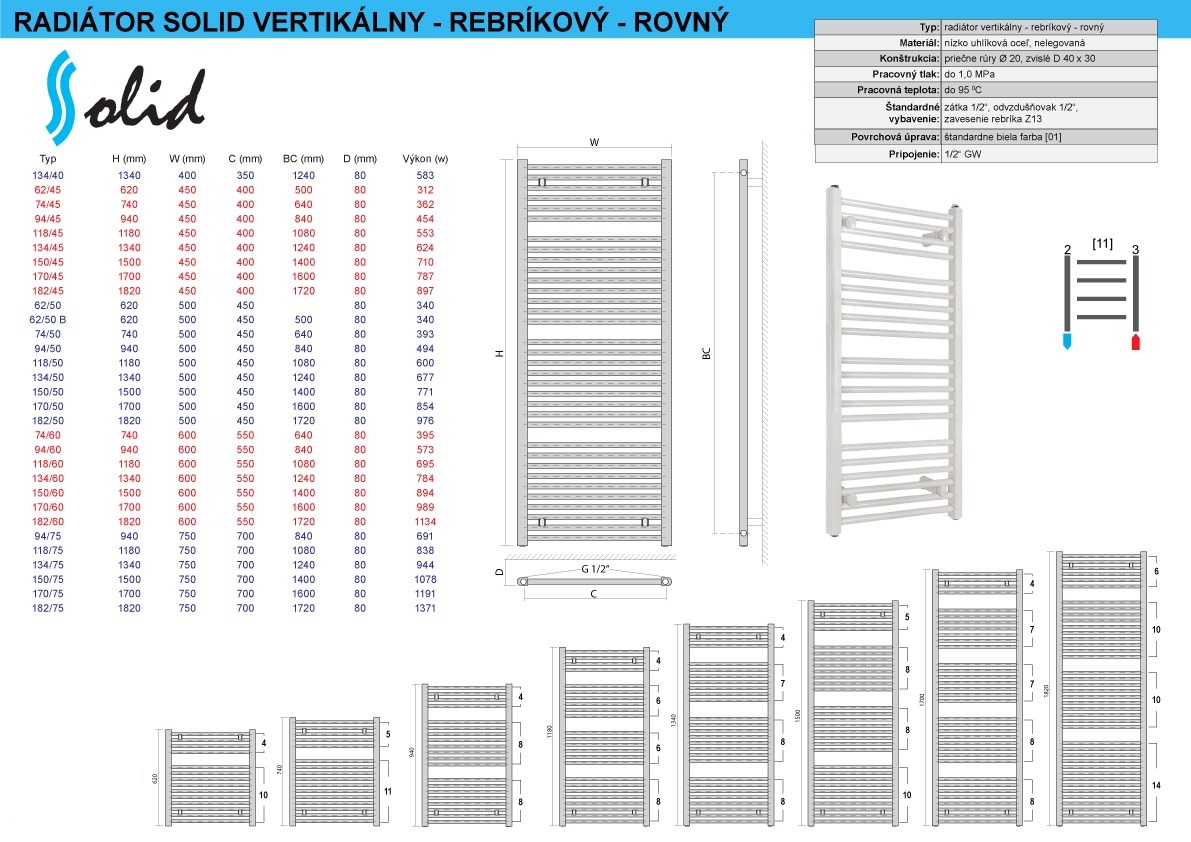

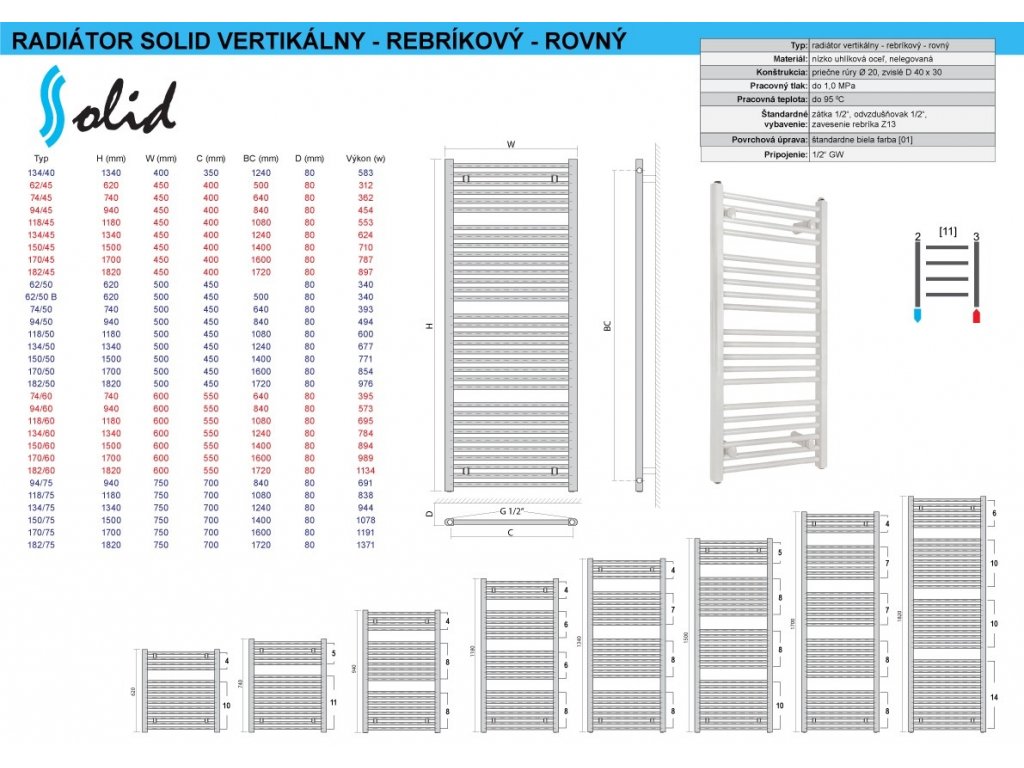

Technical parameters:

Standard height 1820 mm
Standard width 500 mm
Installation depth 80 mm
Connection thread G 1/2" vnútorný
The highest permissible operating temperature 95 °C
Test overpressure 1,5 MPa
Work pressure 1,0 MPa



Additional parameters

Category: vykurovacie rebríky rovné
Warranty: 2 years
Weight: 20 kg
Dodávané príslušenstvo: Rebríkový radiátor rovný, držiaky, hmoždinky, matky, skrutky, odvzdušňovací ventil
Doporučená nemrznúca zmes: Nemrznúca zmes
Doporučené potrubie: Potrubie PEX-AL-PEX 16 x 2
Doporučené príslušenstvo na dopojenie: Príslušenstvo na dopojenie do vykurovania
Doporučený príkon elektrickej špirály (W): 700
Farba, povrch: Biely, lakovaný
Materiál: Oceľ
Maximálna teplota: 95
Maximálny prevádzkový tlak: 1.0 MPa
Možnosť dopojenia elektrickej špirály, (1/2" závit): Áno
Možnosť uloženia horizontálne: Nie
Priemer rebra radiátora (mm): 20
Pripájacie závity: 1/2" vnútorný závit
Profil vykurovacieho rebríku: Rovný
Rozteč závitov (mm): cca 450
Skúšaný tlak: 1.5 MPa
Šírka (mm): cca 500
Výška (mm): cca 1820
