Rebrík rovný 500 x 1340
Code: 53083Related products
Product detailed description

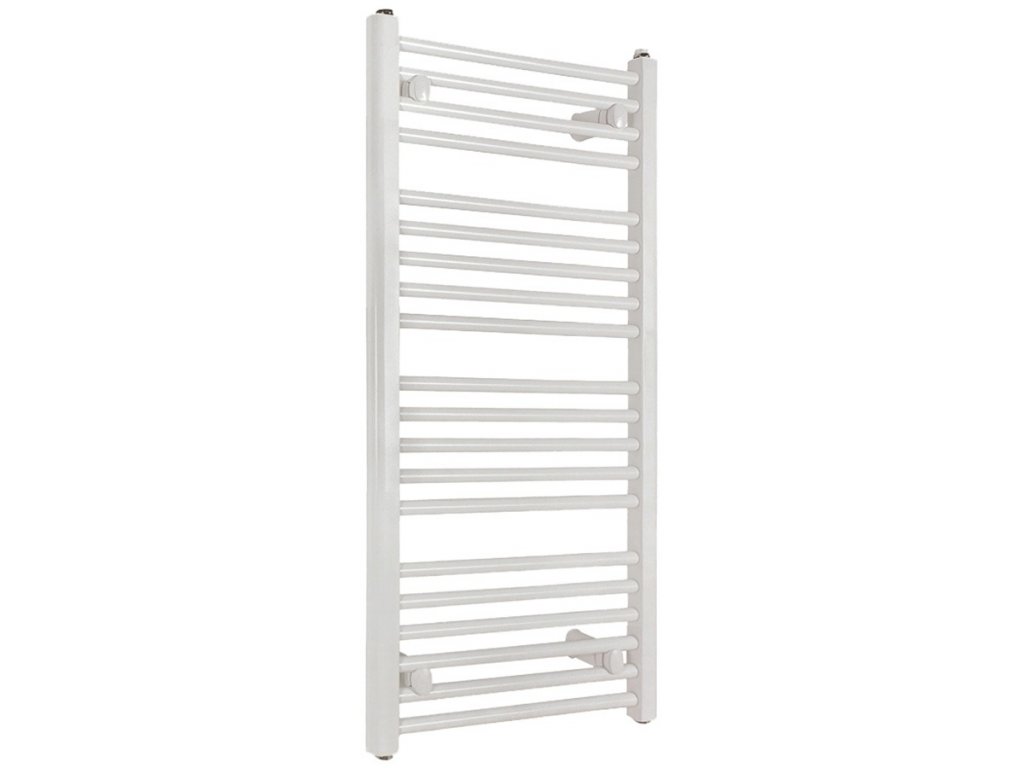

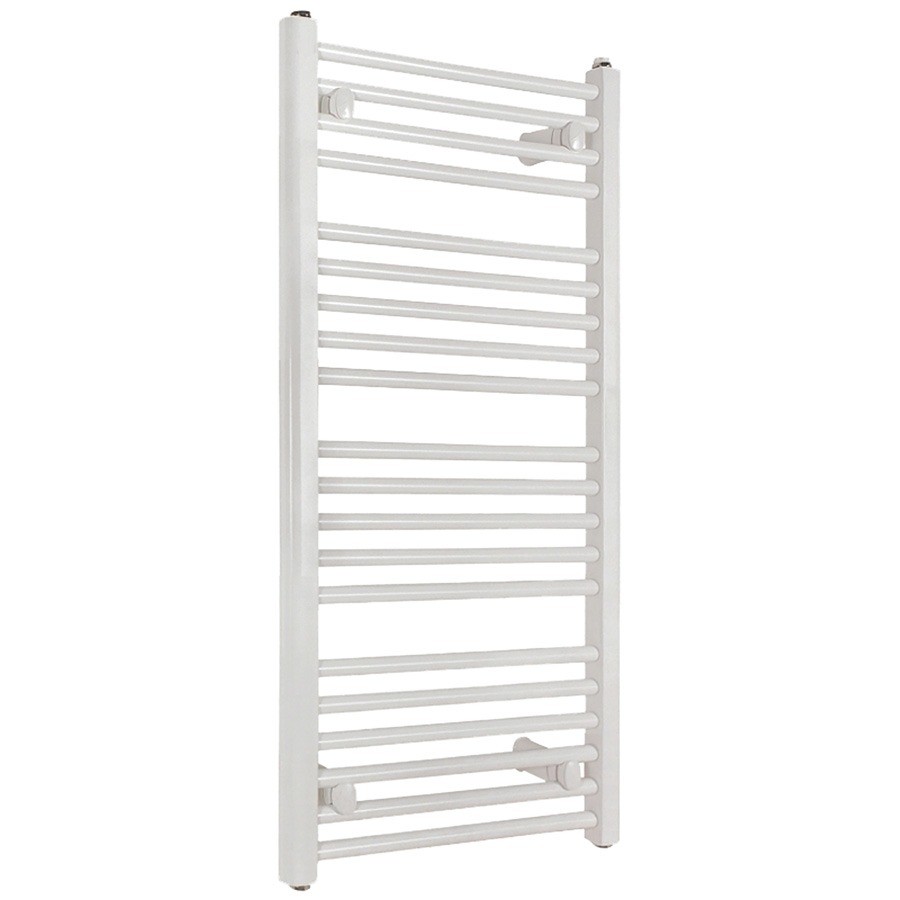

Heating ladder - straight white
- size: 500 x 1340 mm
- designed for heating bathrooms
- in combination with a boiler or purely electric heating
Quality bathroom ladder radiators, which are characterized by a modern appearance, an exceptional combination of aesthetics, functionality and comfort. Ladder radiators fulfill the basic function of heating elements.
Equipment and benefits:
straight metal ladder radiator - width 500 mm
made of low carbon steel
vertical D - profiles 40 x 30 mm
horizontal heating pipes with a diameter of 20 mm guarantee a high flow of the heat-carrying medium
the layout of the heating pipes allows easy hanging of textiles for drying
reinforced walls of heating pipes and profiles guarantee a long service life
high-quality injection guarantees high resistance to corrosion
the possibility of installing an electric coil from both sides
flexible hanging on the wall using the installation kit that is included in the delivery
installation kit includes four pieces of plastic brackets, mounting brackets, vent plugs, washers
The use:
heating of residential and non-residential premises
heating of bathrooms, kitchens, toilets, corridors of sanitary rooms, etc.
drying towels, clothes, various types of textiles
main or backup heat source
heating through hot water central heating
possibility of central heating in combination with electric heating outside the heating season
suitable for systems with forced circulation as well as self-gravity heating water circulation systems
use in the home, in accommodation facilities, businesses, etc.
suitable for the use of heating water or other heat-carrying medium
suitable for installation in a humid environment
hanging installation on the wall by means of a set with brackets
elegant design suitable for any interior
Note: The electric coil is not included in the delivery. In case of use with an electric coil, it is necessary to purchase a plug as well.

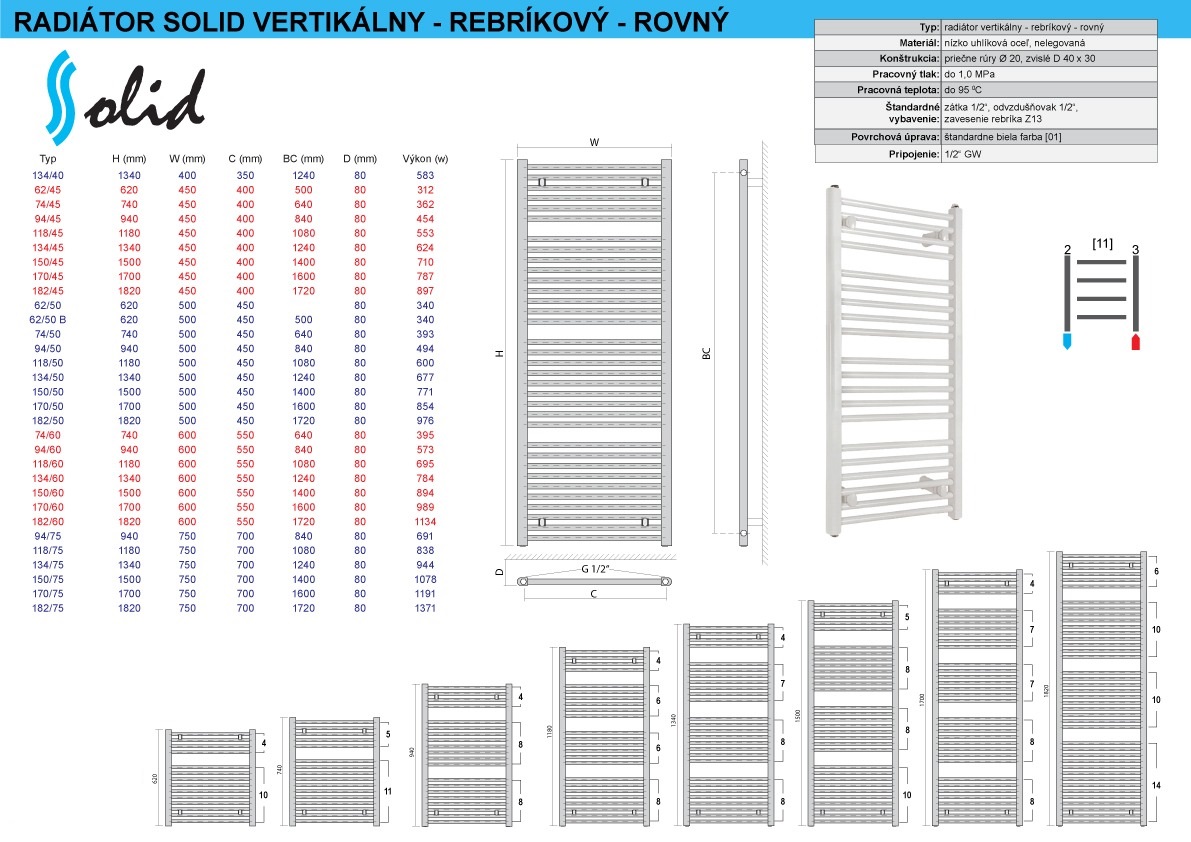

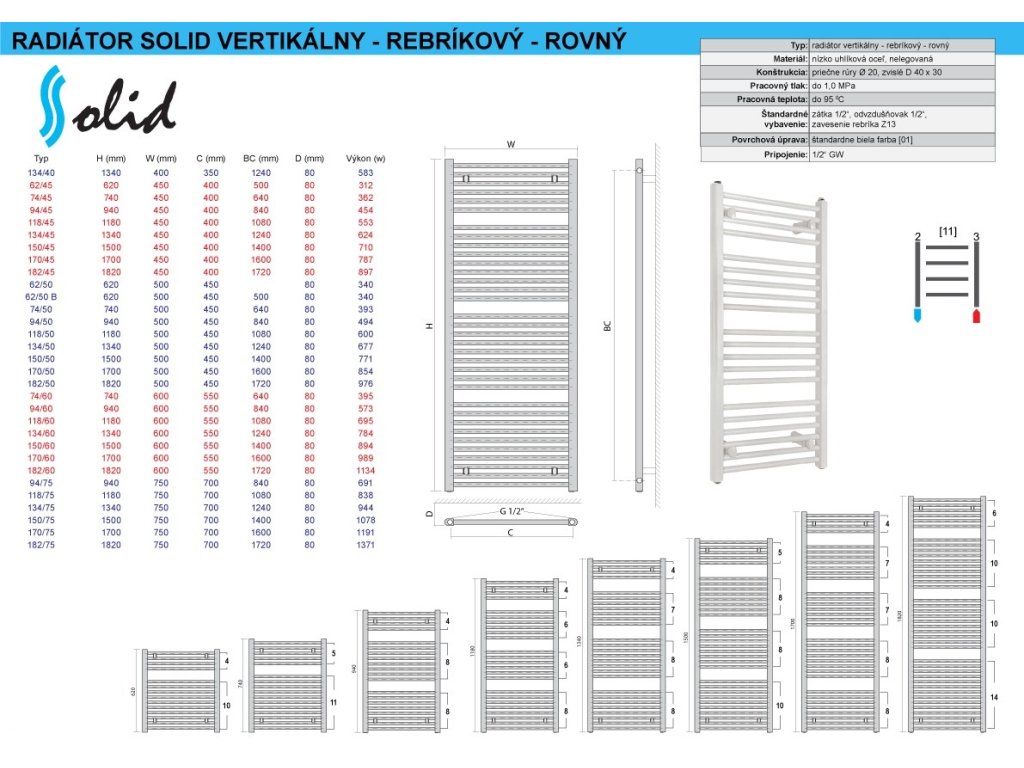

Technical parameters:
Standard height | 1340 mm |
Standard width | 500 mm |
Installation depth | 80 mm |
Connection thread | G 1/2" vnútorný |
The highest permissible operating temperature | 95 °C |
Test overpressure | 1,5 MPa |
Work pressure | 1,0 MPa |
Additional parameters
Category: | vykurovacie rebríky rovné |
---|---|
Warranty: | 2 years |
Weight: | 20 kg |
Dodávané príslušenstvo: | Rebríkový radiátor rovný, držiaky, hmoždinky, matky, skrutky, odvzdušňovací ventil |
Doporučená nemrznúca zmes: | Nemrznúca zmes |
Doporučené potrubie: | Potrubie PEX-AL-PEX 16 x 2 |
Doporučené príslušenstvo na dopojenie: | Príslušenstvo na dopojenie do vykurovania |
Doporučený príkon elektrickej špirály (W): | 400 |
Farba, povrch: | Biely, lakovaný |
Materiál: | Oceľ |
Maximálna teplota: | 95 |
Maximálny prevádzkový tlak: | 1.0 MPa |
Možnosť dopojenia elektrickej špirály, (1/2" závit): | Áno |
Možnosť uloženia horizontálne: | Nie |
Priemer rebra radiátora (mm): | 20 |
Pripájacie závity: | 1/2" vnútorný závit |
Profil vykurovacieho rebríku: | Rovný |
Rozteč závitov (mm): | cca 450 |
Skúšaný tlak: | 1.5 MPa |
Šírka (mm): | cca 500 |
Tepelný exponent: | 1.2908 |
Vodný objem (l): | 6.0 |
Výška (mm): | cca 940 |
