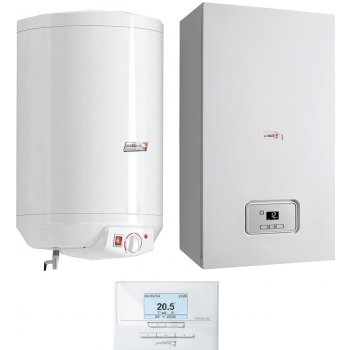

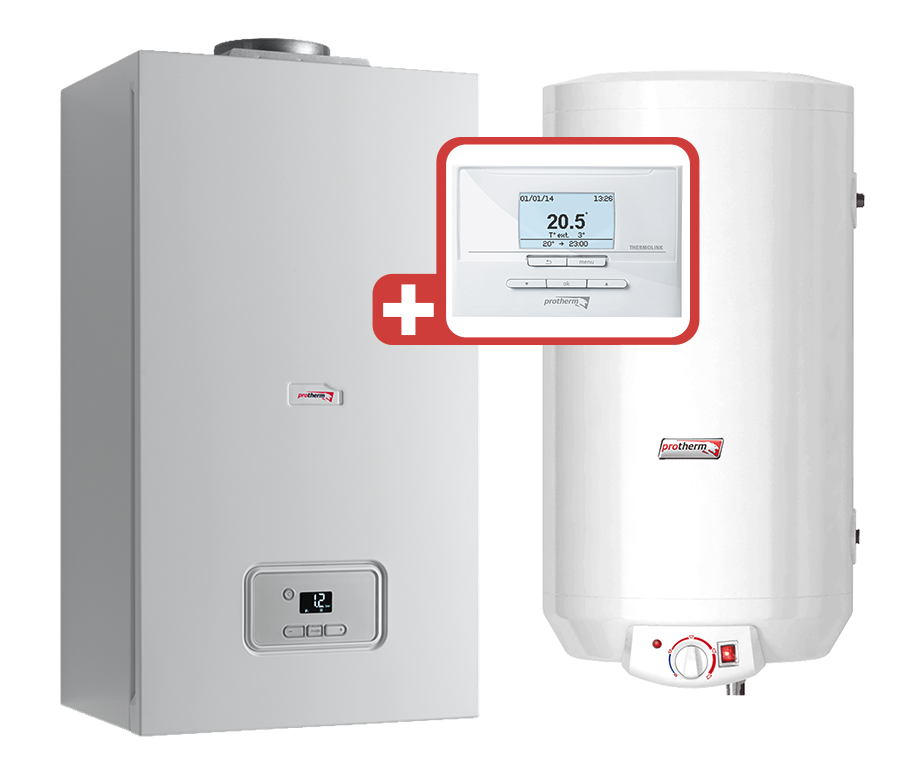

Protherm Gepard Condens 18/25 MKV + WEL 75 ME ľavá + Thermolink P
Code: 0010019894Related products
Product detailed description
Zothava Protherm Chepard Condens 18/25 MKV
+ Cheetah Condens 18/25 MKV - hanging condensing boiler with instantaneous heating TV
+ WEL 75 ME left - TV tank, volume: 82 l
+ Thermolink P - eBUS controller
& nbsp;
PROTHERM GEPARD CONDENS 18/25 MKV
- suspended condensing boiler with flow TV heating
- & nbsp; power: & nbsp; 5.0 - 18.1 kW p>
- significant gas savings due to condensing technology and continuous power control,
- heating comfort using outdoor temperature control (equithermal control *),
- hot water preparation by flow
- safety and ease of use thanks to the latest security features,
- simple control panel with backlit inverted display with excellent readability even in dark rooms and self-diagnostics,
- collaboration with communication controllers - more savings and convenience.
- low weight and easy installation in the system, whether in new construction or when replacing older boilers
Cheetah Condens 18/25 MKV & nbsp; | |
Energy class for heating | A |
Power at 80/60 ° C gradient [kW] | 5.0 - 18.1 |
Power at 50 ° gradient C / 30 ° C [kW] | 5.3 - 19.1 |
Fuel | natural gas |
Efficiency at 80/60 ° C max. power [% ] | 98.2 |
Standard utilization rate at 40/30 ° C [% ] | 108.5 |
Adjustable DHW temperature range [° C] td > | 10 - 80 |
Expansion vessel [l] | 8 |
Max. working pressure [kPa] | 300 |
Flue gas discharge | turbo |
Hot water heating td > | |
Energy class for hot water preparation | A |
TV heating power [kW] | 5.0 - 25.2 |
TV supply pressure range [MPa] | 0.03 - 1 |
Adjustable TV temperature range [° C] < / td> | 35 - 60 |
TV flow at 30K [l / min] < / td> | 12.1 |
TV flow at 35K [l / min] < / td> | 10.4 |
Electrical parameters td> | |
Voltage / Frequency [V / Hz] | 230/50 |
Power [W] | 105 |
Standby power [W] | 2 |
Electrical protection [IP] | IPX4D |
Dimensions | < td style = "text-align: center; width: 242.828px; ">|
Dimensions VS (width / height / depth) [mm] | 418/740/300 |
Weight without water [kg] td > | 31.6 |
& nbsp;
PROTHERM WEL 75/2 ME
- TV hanging tray
- volume: & nbsp; 82 l & nbsp ;
- Hot water preparation with technology & nbsp; shift-load & nbsp; - water heating via plate heat exchanger boiler combi with accessories
- Net tank capacity & nbsp; 82 liters
- Hanging version & nbsp; suitable for hanging boiler assemblies
- Built-in heating & nbsp; electric spiral 2 kW & nbsp; span > as an additional heating method in case of boiler failure
- Corrosion protection & nbsp; magnesium anode
- Minimal heat loss due to new type insulation & nbsp; made of rigid PUR foam (heat loss label value "B")
< / td> | WEL 75 ME |
Hot water energy class | B |
Domestic water volume td> | 82 l |
Max. operating pressure | 8 bar |
Max. water temperature | 80 ° C |
Domestic water connection span > | G 1/2" |
Amount in 10 min. | 163 l |
First tank warm-up time (from 10 ° C at 60 ° C) | 16 min |
Height / Average < / td> | 815/469 mm |
Weight without water span > | 24 kg |
Electrical voltage / frequency | 230 V / 50 Hz |
Electrical input span > | 2 kW |
Degree of electrical coverage < / td> | IP21 |
Max. prev. temperature | 80 ° C |
& nbsp;

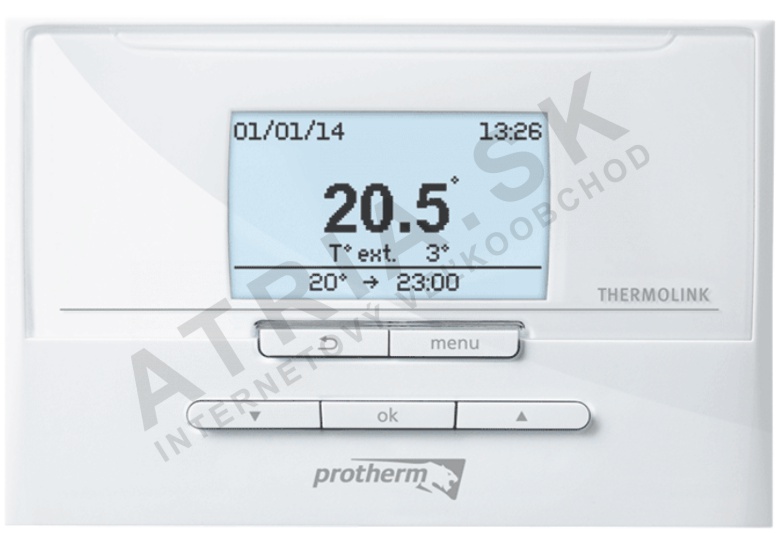

PROTHERM THERMOLINK P & nbsp; - room communication controller & nbsp;
eBus & nbsp; programmable & nbsp; controller allows to set one weekly program with the possibility of combining up to 7 different time periods with individually adjustable temperature for heating and also for hot water heating. It allows control of heating system depending on the room temperature and the set heating program, or e also depending on the outdoor temperature (if an outdoor sensor is connected) with the possibility of automatic optimization of the heating curve. div>
- Reduce heating costs
- Continuous control boiler (eBus)
- Simple control of the controller with text guidance on the backlit display
- Possibility to set the TV temperature with a weekly program < li> Possibility to select an automatic equithermal curve
- Optimal heating start to reach the required temperature at the beginning of the time interval
- Recirculation pump control by weekly program ramom
- System frost protection
- Display of the current time and day of the week and the current room temperature (or outdoor temperature)
Parameters
THERMOLINK P | |
Typ | e-BUS |
Type of program (TV and VV) td > | weekly |
Number of temperature changes per day | 7 |
Room temperature setting range | 5 - 30 ° C |
Regulatory characteristics | smooth |
TV temperature setting range | 38 - 65 ° C |
Setting equithermal curves | < td style = "width: 124.109px; text-align: center; "> yes|
Automatic heating curve | yes |
Holiday traffic | yes |
System frost protection | yes |
Time display | yes |
Recirculation pump control | yes |
Optimal start | yes |
Optical low battery indication | no |
Boiler connection | wired |
Additional parameters
Category: | Protherm |
---|---|
Warranty: | 2 years |
Weight: | 100 kg |
Určenie kotla: | kotol v zostave so 75 l zásobníkom |
Výkon kotla na vykurovanie: | vysoký výkon nad 16 kW |
Výrobca: | Protherm |
