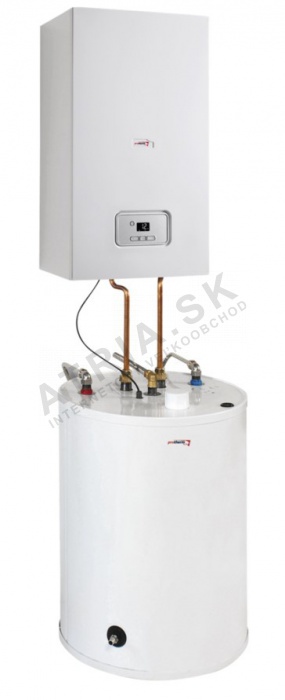

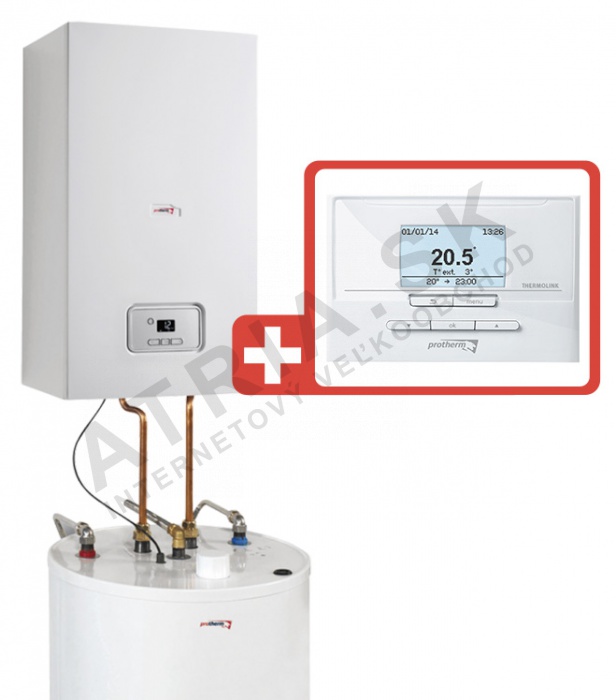

Protherm Gepard Condens 12 MKO + FE 120 BM dolná + Thermolink P
Code: 0010019890Related products
Product detailed description
Protherm Cheetah Condens 12 MKO lineup
+ Cheetah Condens 12 MKO & nbsp; - suspended condensing boiler with the possibility of connecting a tank
+ FE 120 BM & nbsp; - TV tray, volume: & nbsp; 120 l strong>
+ Thermolink P & nbsp; - eBUS controller & nbsp;
& nbsp;
PROTHERM GEPARD CONDENS 12 MKO
- suspended condensing boiler with the possibility of connecting an external tank
- power: & nbsp; 4.0 - 12.0 kW
Cheetah Condens MKO < span> & nbsp; are suspended condensing gas heating boilers with the possibility of variable connection of the hot water tank, with the possibility of controlling the boiler according to the outdoor temperature.
- Significant gas savings due to condensing technology and continuous power control,
- Heating comfort using outdoor temperature control (equithermal control *),
- safety and ease of use thanks to the latest safety features,
- simple control panel with backlit inverted display with excellent readability even in dark rooms and self-diagnostics,
- cooperation with communication controllers - more savings and convenience.
- light weight and easy installation in the system, whether in new construction or when replacing older boilers & nbsp;
Cheetah Condens 12 MKO & nbsp; | |
Heating | |
Energy class for heating | A |
Power at 80/60 ° C gradient [kW ] | 4.0 - 12.0 |
Power at gradient 50 ° C / 30 ° C [kW] | 4.3 - 12.7 |
Fuel | < td style = "width: 240.641px; text-align: center; "> natural gas|
Efficiency at 80/60 ° C max. power [ %] | 98.2 |
Standard utilization rate at 40/30 ° C [ %] | 108.5 |
Adjustable DHW temperature range [° C] td> | 10 - 80 |
Expansion vessel [l] | < td style = "width: 240.641px; text-align: center; "> 8|
Max working pressure [kPa] | < td style = "width: 240.641px; text-align: center; "> 300|
Flue gas discharge | turbo |
Hot water heating td> | 4.0 - 15.0 & nbsp; (applies to additional tank water heating) |
TV supply pressure range [MPa] | - |
Adjustable TV temperature range [° C] | 45 - 60 |
TV flow at 30K [l / min] | - |
Prietok TV pri Δt 35K [l / min] td> | - |
Electrical parameters td > | |
Voltage / Frequency [V / Hz] | 230/50 |
Power [W] | 105 |
Standby power [W] | < td style = "width: 240.641px; text-align: center; "> 2|
Electrical protection [IP] | IPX4D |
Dimensions | |
Dimensions VS (width / height / depth) [mm] | 418/740/300 |
Weight without water [kg] td> | 31 |
PROTHERM FE 120 BM
- Stationary TV tray
- Volume: & nbsp; 120 l & nbsp;
- Indirectly heated tank with spiral tube heat exchanger
- Net tank volume & nbsp; 117 liters < High quality steel container & nbsp; with high quality enamel
- Stationary version < span> & nbsp; suitable for hanging boiler assemblies
- Corrosion protection & nbsp; magnesium anode
- Simple recirculation circuit connection
- Easy draining of water from the tank via & nbsp; built-in drain valve
- Improved distribution of cold water at the bottom of the tank thanks to new design of the cold water inlet diffuser to the tank
- Minimal heat losses due to the new type of insulation
& nbsp; rigid PUR foam (energy class "B") & nbsp;
FE 120 BM | |
Hot water energy class | B |
Domestic water volume td> | 117 l |
Max. operating pressure | 10 bar |
Max. water temperature | 85 ° C |
Max. heating water inlet temperature | 110 ° C |
VV connection | R 1" |
Domestic water connection | R 3/4 " |
Recirculation Connection | R 3/4" |
Drain valve and plug < / span> | G 1 " |
Heat output & nbsp; | 21.4 kW |
Hourly flow | 527 |
Amount in 10 minutes & nbsp; span> | 163 l |
Standby power losses > | 1 kWh / d |
Heat exchanger heating surface < / span> | 0.7 m2 |
Heating water content in the heat exchanger & nbsp; | 4.8 l |
Heat exchanger pressure losses at max heating water consumption | 17 mbar |
Heat transfer water flow < / td> | 1,400 l / h |
Continuous hot water output at heating water temperature 85/65 ° C | 21.4 kW |
Continuous hot water output at temperature heating water 85/65 ° C | 527 l / h |
Performance characteristics | 1.4 N |
Dimensions < / td> | |
Height / Diameter | 822/590 mm |
Weight with operating charge span> | 185 kg |
Weight without water < / td> | 68 kg |
PROTHERM THERMOLINK P < span> & nbsp; - room communication controller & nbsp;
eBus & nbsp; programovatelny & nbsp; The controller allows you to set one weekly program with the possibility of combining up to 7 different time periods with individually adjustable temperature for heating and hot water heating. if An external sensor is connected) with the possibility of automatic optimization of the heating curve. The Thermolink P variant is a Thermolink RC with the same properties and parameters but with a wireless connection to the boiler. the following types of boilers: Tiger Condens, Panther Condens, Lev, Panther, Cheetah, Cheetah Condens and Electric Boiler Ray.
- Reduce heating costs
- Continuous boiler control (eBus) < / li>
- Easy control of the controller with text guidance on the backlit display
- Possibility to set the temperature of the TV with a weekly program
- Possibility to select the automatic equithermal curve li>
- Optimal heating start to reach the required temperature at the beginning of the time interval
- Recirculation pump control with weekly program
- Frost protection system
- Display the current time and day of the week and the current room temperature (or outdoor temperature)
Parameters p>
THERMOLINK P | |
Typ | e-BUS |
Type of program (TV and VV) td > | weekly |
Number of temperature changes per day | 7 |
Room temperature setting range | 5 - 30 ° C |
Regulatory characteristics | smooth |
TV temperature setting range | 38 - 65 ° C |
Setting equithermal curves | < td style = "width: 133.359px; text-align: center; "> yes|
Automatic heating curve | yes |
Holiday traffic | yes |
System frost protection | yes |
Time display | yes |
Recirculation pump control | yes |
Optimal start | yes |
Optical low battery indication | no |
Boiler connection | wired |
& nbsp;
< / div>Additional parameters
Category: | Gepard Condens + 120l zásobníkkotol v zostave so 120 l zásobníkom nízky výkon do 15 kW Protherm |
---|---|
Warranty: | 2 years |
Weight: | 100 kg |
Určenie kotla: | kotol v zostave so 120 l zásobníkom |
Výkon kotla na vykurovanie: | nízky výkon do 15 kW |
Výrobca: | Protherm |
