GEMINOX THRS Medium Set 120 1-10 C

Code: NC-22291

Not rated

Brand: GEMINOX

4 196,40 € –34 %

4 196,40 € –34 % 2 741 € / pcs

Predaj skončil

Detailed information

Product detailed description

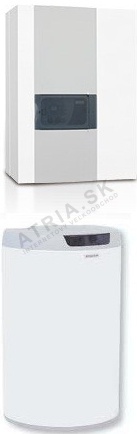

GEMINOX THRS Medium Set 120 1-10 C - set of boiler and 120 litre enamel tank

Set contents:

Condensing boiler: THRs 1-10 C
Molded storage tank: OKC 125
Boiler/storage tank connection: KIT BS
External probe: QAC 34

THRs 1-10C - a boiler whose modulation in the range of 0.9 - 9.5 kW is unrivalled. Ideal for bungalows and low-energy houses.

The THRs model range represents the fourth generation of Geminox condensing boilers. They are designed wherever achieving maximum comfort and minimum operating costs is a clear priority.

The design of the THR s model range of condensing boilers is based on the previous THRi model range, which has been fully proven in operation in the most demanding markets and has long held the number one position in the demanding condensing technology markets in Denmark, the USA and Switzerland. Through careful development and application of the latest knowledge in the field of condensing technology, this has made the boilers even more perfect. Their technical parameters objectively place the THRs boilers in the first place among energy-saving appliances on the Slovak market of gas heating technology.

New multifunctional control unit LMS 14- boiler control interface AVS 37- control of up to three outputs ( circuits)- automatic recognition of hydraulic systems as RVS- support for solar heating- input for flash- only one clip for expanding functions- illuminated room unit QAA75- wireless unit QAA78- two room units in the DC version- control of cascades- web server OZV- Low-energy pumps- Mechanical pressure gauge- One universal TV tank connection kit for all types (DC)

Features:

According to the European standard 92/42/CEE, THRS boilers are classified in the **** energy efficiency class
Wide range of modulation from 20-100 % power (10-100 % for THRs 1-10)
Highest class comfort - integrated control allows two heating circuits to be connected thanks to the CLIP-IN system, (optional accessory) possibility to sort the boilers into cascades (mainly used for 10-50C)
Very economical operation - efficiency up to 109.5% according to EN 92/42 CEE - gas savings 25-40%
Low NOx (max. 40 mg/m3) and CO (max. 20 mg/m3)
Universality - possibility of flue gas exhaust through the chimney or TURBO system
Long service life: significant reduction in the number of switching cycles, use of austenitic 318 FT stainless steel for the most exposed parts of the boiler
Easy operation and maintenance
The comfort of TV heating is ensured by an integrated all-stainless-steel tank with a capacity of 75 l, with storage either at the bottom of the boiler (ventral design - "V" models) or next to the right (horizontal design - "H" models)
