Bosch Condens GC9000iW 20 EB + W 120-5 O1 B + CW 400 + MBLANi
Code: 8730850009Related products
Product detailed description
BOSH 9000iW 20 B W120 CW400
- Condens GC9000iW 20 EB
-hung condensing boiler with storage tank connection- WD 120-5 O1 B - hot water storage tank, capacity: 116 l
- CW 400- system controller
- MBLANi module- integrated into the boiler
- mounting plate
BOSCH GC9000iW 20 EB
-hung condensing boiler with Bosch external storage tank connection
2.8 - 20 kW
- color: black
Action in many combinations
Condens 9000i W meets the most diverse requirements with power classes 20 to 50 kW. In the 20 and 30 kW power classes you get a wall-mounted boiler with complete equipment including expansion tank, pump and changeover valve.
High efficiency all year round
With a high 94% space heating efficiency, the Condens 9000i W achieves the energy class
A+ efficiency (when using the CW 400 controller controlled by the outside temperature). The burner operates modulating over a wide range of 10 to 100% of maximum output. This makes the boiler even more efficient when in your home
you do not need full power.
Highest quality quality
High quality is one of the hallmarks of the Condens 9000i W. Long-life heat exchanger
lifetime and easy cleaning is a good example of this. It is made of durable aluminium alloy
with corrosion-resistant silicon, which can be easily cleaned by a professional heating engineer
.
Easy and comfortable operation
You can conveniently control the basic heating functions via the touch screen. Making a mistake is virtually impossible.
Installation at a glance
The sophisticated internal design speeds up installation. Your heating engineer can easily reach everything. With just a few hand movements, the Condens 9000i W is already hanging on the wall and can be put into operation. Compared to the previous generation, the professional saves a significant part of the installation time.
Quickly ready for operation
Use the innovative touchscreen controller to conveniently control basic heating functions. In addition, the CW 400 supplementary controller enables expert commissioning at the touch of a button.
Easy maintenance
The open design gives the heating engineer plenty of space for handling tools. So the heating engineer saves
a lot of time during each service.
Boiler features
▶ High efficiency throughout the year thanks to the wide 1:10 modulation
▶ Attractive design with noble glass surface
▶ Noble materials with long service life
▶ Easy to use
▶ Internet control capability
▶ Fast and time-saving installation and maintenance
▶ Choice of different power versions and colours
▶ Adapter for flue gas extraction is included in the boiler delivery
Dimensions and connections
1 - GC 9000iW 20 EB
A - Concentric flue gas adapter Ø 80/125 mm
B - Heating outlet - 3/4" overflow nut
C - Heat water - 1/2" union nut
D - Gas Connection - G 1/1" union nut
E - Cold Water - 1/2" union nut
F - Heating Outlet - 3/4" union nut
Technical data
Front design colour: black
Max. 20.0 kW
Min. rated thermal output (50/30° C): 2.8 kW
Nominal thermal output: 19 kW
Maximum hot water output: 19.3 kW
ErP15 sound power level: 42 dB (A)
Seasonally dependent heating efficiency
spaces according to ErP15: 94%
Energy efficiency class: A
Equipment
Expansion vessel: 15 l
High efficiency pump EEI ≤ 0.23: integrated
Switching valve: integrated
Dimensions and weight
Height: 735 mm
Width: 520 mm
Depth: 420 mm
Net weight: 48 kg
BOSH W 120-5 O1 B
- hot water tank
- volume: 116 l
- color: silver
- Design: stationary, cylindrical
- with a usable volume of 116 l
- suitable for combination with wall hung condensing boiler
- possibility to draw hot water from several places at the same time
- easy installation and economical operation
- possibility to connect the circulation circuit directly from the tank body (bacteriologically clean water)
- insulation produced without the use of fluorinated and chlorinated hydrocarbons
- high corrosion resistance
- enamelled surface and built-in protective anodes ensuring environmental requirements are met and high durability is achieved
Technical data
Colour: silver
Useable volume: 116 l
Heating insert output: 34.0 kW
Hot water 45 °C capacity: 834 l/hr
Heating water volume: 6.8 l
Heating area: 1.0 m2
Max. 10.0 bar
Energy efficiency class: C
Dimensions and weight
Height: 1135 mm
Width: 600 mm
Depth: 600 mm
Net weight: 72 kg

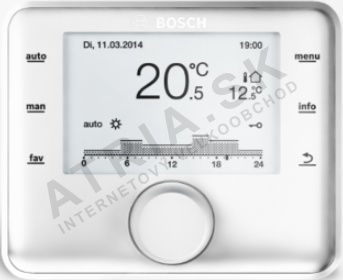

BOSCH CW 400 - system controller
- system controller controlled by outdoor temperature
- for gas boilers up to 4 heating circuits
- without remote control
- 2 DHW charging circuits
- for single/complex heating systems
- weekly program for heating with 6 switching points during the day
- two adjustable temperature levels
- compatible with MM 100 and MS 100/200, MC 400
- 2 hot water circuits
- solar heating hot water
- solar heating support
- selection of two freely adjustable weekly programmes for the heating circuit
- circulation pump programme, holiday programme
BOSCH Module MBLANi
- module for remote control of the Condens 9000iW boiler via the internet in combination with the CW400 controller
- integrable into the boiler
Additional parameters
| Category: | Condens 9000iWkotol v zostave so 120 l zásobníkom vysoký výkon nad 16 kW Bosch |
|---|---|
| Warranty: | 2 years |
| Weight: | 99.86 kg |
| Určenie kotla: | kotol v zostave so 120 l zásobníkom |
| Výkon kotla na vykurovanie: | vysoký výkon nad 16 kW |
| Výrobca: | Bosch |
| Brutto váha: | 114,35 kg |
| Netto váha: | 99,86 kg |
| EAN: | 4057749774125 |
