Baxi Prime 24

Product detailed description

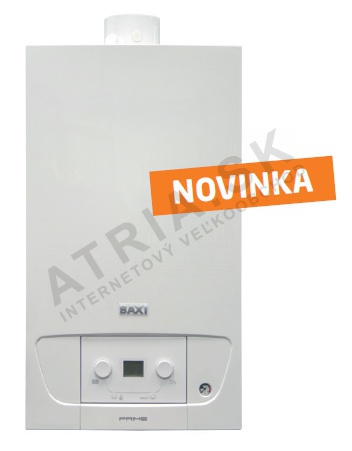

Baxi Prime 24 condensing gas boiler

• Digital LCD display with backlight
• Simple operation thanks to rotary knobs separately for heating and DHW
• Modulation range up to 1:5
• High efficiency modulating pump
• Compact dimensions: 700 × 395 × 279 mm
• Self-adjustable gas fitting: automatic combustion control ensures maximum efficiency throughout operation
• NOx class 5
• combined (heating + DHW)
• Power output [kW]: 4,8 - 24

• Design: wall-mounted, instantaneous DHW heater
• Variant: condensing
• Rated output 4,8 -22,8 kW (TV heating 24 kW)
• Flue gas exhaust: condensing 60/100; 80/125 or 2 x 80
• Silent operation: YES
• Heating of DHW: instantaneous
• Indoor pump: YES - high efficiency, electronically controlled, modulating, ErP ready
• Built-in flue damper: yes
• Fuse valve: YES
• Automatic diagnostic system: YES
• Automatic vent: YES
• Fuel sensor: YES
• Connection voltage: 230 V / 50 Hz
• Rated electrical input: 89 W
• Graphic display: YES - LCD display
• Rating of protection: IP x 5 D
• Height x width x depth: 700 x 395 x 279 mm
